RHD Butt Welding Machine
RHD Butt Welding Machine

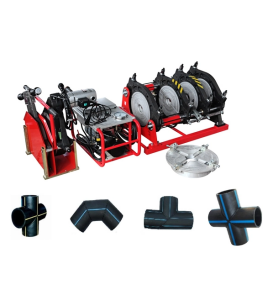

The RHD Butt Welding Machine is an advanced welding solution designed for joining two of the same material and size. Its automated butt fusion technology ensures that the welding process is carried out efficiently and accurately. The machine is suitable for a wide range of applications, including water and gas piping systems, and it can weld with a diameter ranging from 63mm to 1600mm. Its user-friendly controls and durable construction make it an ideal tool for professionals in the plumbing and pipeline industries.
Butt fusion welding is the most popular welding method for HDPE piping system, and hdpe pipe butt fusion machine is an industrial machine which is extensively demanded for welding purposes.
The butt fusion welding machine are made of four parts, including: planing tools, heating plate, basic frame & hydraulic unit (if hydraulic type).
Technical Specification of RHD Butt Welding Machine 63-1600mm
|
Model |
RHD 160 |
RHD 250 |
RHD 315 |
|
Welding range(mm) |
63, 75, 90, 110, 125, 140, 160 |
110, 125, 140, 160, 180, 200, 225, 250 |
160, 180, 200, 225, 250, 280, 315 |
|
Heating Plate Max. Temp |
270°C |
270°C |
270°C |
|
Temp. Deviation in surface |
<±5°</span> |
<±5°</span> |
<±5°</span> |
|
Working voltage |
220V, 50Hz |
220V, 50Hz |
220V, 50Hz |
|
Heating Plate Power |
1.0 KW |
2.1 KW |
3.1 KW |
|
Planing Tool Power (KW) |
0.7 KW |
1.1 KW |
1.1 KW |
|
Heating Plate Power (KW) |
0.75 KW |
0.75 KW |
0.75 KW |
|
Total Power (KW) |
2.45 KW |
3.95 KW |
4.95KW |
|
Weight (KGS) |
107 KGS |
143 KGS |
205 KGS |
|
Basic Frame Dimension (L*W*H) |
970 x 505 x 490 mm |
995 x 600 x 555 mm |
1075 x 695 x 710 mm |
|
Support Dimension (L*W*H) |
525 x525 x 570 mm |
610 x 590 x 670 mm |
800 x 655 x 760 mm |
|
Hydraulic unit Dimension (L*W*H) |
690 x 490 x 540 mm |
690 x 490 x 540 mm |
685 x 495 x 545 mm |
|
Model |
RHD450 |
RHD500 |
RHD630 |
|
Welding range(mm) |
280, 315, 355, 400, 450 |
315, 355, 400, 450, 500 |
400, 450, 500, 560, 630 |
|
Heating Plate Max. Temp |
270°C |
270°C |
270°C |
|
T emp. Deviation in surface |
<±7°</span> |
<±7°</span> |
<±7°</span> |
|
Working voltage |
380V, 50Hz |
380V, 50Hz |
380V, 50Hz |
|
Heating Plate Power (KW) |
5.2 KW |
5.4 KW |
9.2 KW |
|
Planing Tool Power( KW) |
1.5 KW |
1.5 KW |
1.5 KW |
|
Hydraulic unit Power (KW) |
1.5 KW |
1.5 KW |
1.5 KW |
|
Total Power (KW) |
8.2 KW |
8.4 KW |
12.2 KW |
|
Weight (KGS) |
376 KGS |
439 KGS |
640 KGS |
|
Basic Frame Dimension (L*W*H*) |
1485 x 905 x 1065 mm |
1590 x 920 x 1070 mm |
1650 x 1150 x 1280 mm |
|
Support Dimension (L*W*H*) |
1000 x 725 x 1350 mm |
1020 x 770 x 1410 mm |
1155 x 850 x 1470 mm |
|
Hydraulic unit Dimension (L*W*H*) |
755 x 505 x 660 mm |
770 X 530 x 540mm |
755 x 505 x 660mm |
|
Model |
RHD800 |
RHD1 000 |
RHD1200 |
RHD1600 |
|
Welding ranges (mm) |
630, 710, 800 |
710, 800, 900, 1000 |
800, 900, 1000, 1200 |
1200, 1400, 1600 |
|
Heating Plate Max. Temp. |
270°C |
270°C |
270°C |
270°C |
|
Temp. Deviation in surface |
<±7°</span> |
<±7°</span> |
<±7°</span> |
<±7°</span> |
|
Working voltage |
380V, 50Hz |
380V, 50Hz |
380V, 50Hz |
380V, 50Hz |
|
Heating Plate Power |
12.5 KW |
18KW |
29.2KW |
30KW |
|
Planing Tool Power |
1.5 KW |
3 KW |
3 KW |
4 KW |
|
Hydraulic unit Power |
1.5KW |
2.2 KW |
3 KW |
4 KW |
|
Electric Crane Power |
0.5KW |
0. 5KW |
1 KW |
1 KW |
|
Total Power |
16 KW |
23.7 KW |
36.2 KW |
39 KW |
|
Weight |
1260 KGS |
1820 KGS |
3596 KGS |
5960 KGS |
|
Basic Frame Dimension |
2150 x 1545 x 1625 |
2520 x 1810 x 1680 |
2900 x 2100 x 2030 |
3500 x 2200 x 2150 |
|
Support Dimension |
1400 x 850 x 1765 |
1360 x 1000 x 1800 |
1700 x 1200 x 2200 |
1800 x 1150 x 1820 |
|
Hydraulic unit Dimension |
900 x 550 x 620 |
800 x 470 x 600 |
860 x 510 x 660 |
2480 x 1800 x 380 |
|
Hoist Dimension |
2570 x 635 x 420 |
2490 x 620 x 560 |
3100 x 600 x 450 |
4050 x 450 x 610 |
|
Electric crane |
730 x 460 x 450 |
730 x 460 x 450 |
530 x 360 x 400 |
800 x 500 x 450 |
Features of RHD Butt Welding Machine 63-1600mm
Suitable for butt welding of plastic and fittings made of HDPE, PPR and PVDF in a ditch in worksite or workshop.
Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts.
Removable PTFE coated heating plate with high accurate temperature control system.
Electrical planing tool.
Be made of lightweight and high strength material; simple structure, small and delicate, user friendly.
Low starting pressure ensures reliable welding quality of small .
Changeable welding position enables to weld various fittings more easily.
High accurate and shockproof pressure meter indicates clearer readings.
Separate two-channel timer records time in soaking and cooling phases.
Applications of the butt fusion machine for sale
Water supply, gas distribution, and sewage systems are just a few of the industries where the hdpe pipe manual welding machine is used. When linking big diameter is required during pipeline building and maintenance operations, it is very helpful. The device may also be utilized in sectors including chemical processing, food and beverage production, and pharmaceutical manufacture that need precision welding. It is a dependable and effective solution for a multitude of welding applications because to its automated butt fusion technology, which guarantees consistent, high-quality welds.
If you need any kinds of butt welder, please contact us, as one of the butt welder manufacturers, xjgmachine is willing to offer you high quality products.
If you are looking for a reliable butt welding machine manufacturer, don't hesitate to contact us!
There are many plastic processing machine manufacturers, but we are one of the best choices for you.
