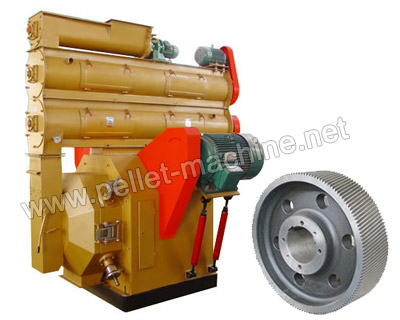

Ring Die Feed Pellet Mill
Quantité : 15-20 sets Prix : USD 1500-2000 per se
Ring Die Feed Pellet MillIntroduction
Ring die pellet mill is an ideal pelletizing machine for high quality feed pellets.Before pelletizing, grains such as corn, wheat, rice and soybean, etc. need to be crushed into powder, Also they should be mixed thoroughly with a mixer since other additives may be added to ensure a balanced feed formulation. The finished feed pellets have a smooth surface and easy to digest for animals. Therefore ring die feed pellet mill is widely adopted by livestock farm, feed processing industry and aquaculture.
Different Requirements for Animal Feed Pellets
Different animals have special requirements of pellets, we have several types of ring die pellet mills which can respectively produce livestock feed pellets, poultry feed pellets, aquatic feed pellets, etc.
1. For pig, the pellet diameter is usually 3.5-6.5mm.
2. For cattle, the pellet diameter is usually 4.5-8mm.
3. For chicken, pellet diameter is usually 3.2mm.
4. For fish, pellet diameter is usually 2.0, 2.5, 3.0mm
5. For shrimps, pellet diameter is usually 1.0-3.5mm
Ring Die Feed Pellet Mill Features
1. Adopt aerodynamic technology, reducing the temperature in pelletizing chamber to around 90 Degrees Celsius, therefore the machine can work well continuously.
2. Using spheroidal graphite cast iron, the machine body is more durable.
3. Treated by hardness quenching and milling machine, the gears maintain high concentricity with the shaft, thus ensuring a good performance and large capacity than belt driven models.
4. With lubrication system, you can add grease to main shaft without having to turn off the machine.
5. The ring die mould are cast by heat processing technology, thus having a durable life and producing qualified pellets.
6. Equipped with an advanced compensation serpentine-spring coupling which connects the pelletizing chamber with the motor to increase safety and stability.
7. Permanent magnet device can remove impurities in the pelletizing process.
8. Multi-layer conditioners can be installed to improve quality of aquatic feed pellets.
Unique Characters of Ring Die Pellet Mill for Making Feed Pellets
1. Unlike materials that are used to make wood pellets, grains for making feed pellets can get into the pellet machine just through gravity, thus imperative feeding device is not necessary.
2. During the pelletizing process, steam should be added through the steam pipe. The steam can accelerate the ripening of materials and the finished pellets are easy to digest for animals.
3. Multi-layer can be mounted to produce certain high-grade feedstuff pellets.
Ring Die Pellet Mill for Making Feed Pellets Parameters
Model |
Capacity |
Main Power |
Feeding Power |
Conditioner Power |
Rotating Rate |
SZLH320 |
2-5t/h |
37kw |
0.55kw |
2.2kw |
305rpm |
SZLH350 |
1.5-8t/h |
55kw |
0.75kw |
2.2kw |
336rpm |
SZLH400 |
2-10t/h |
75/90kw |
0.75kw |
2.2kw |
307rpm |
SZLH420 |
3-12t/h |
110kw |
1.5kw |
5.5kw |
287rpm |
SZLH508 |
4-20t/h |
132/160kw |
1.5kw |
7.5kw |
287rpm |
