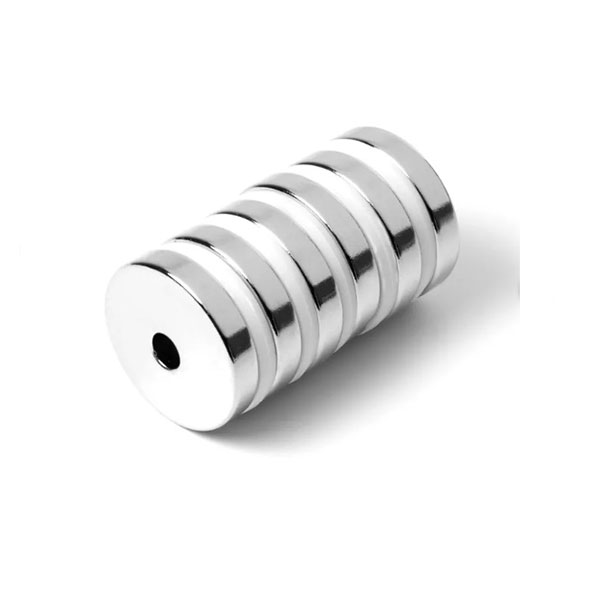

A flat circular magnet with a thickness not exceeding the diameter and a through hole in the middle is called a ring magnet, or magnetic ring. It was called tube magnet if thickness exceed the diameter. The magnet neodymium ring can be fixed
by mechanical connection. As a leading neodymium ring magnets factory in China, BeiLun Meank provides quality neodymium ring magnets for sale. Our neodymium magnets ring is divided into straight-hole magnetic rings and countersunk ring magnets. Compared with other shapes of magnets, ring circular neodymium magnets are easy to break due to external forces. The ring neodymium magnets are specified by outer diameter, inner diameter and height, such as ring magnets OD20xID5xH5.
Neodymium Ring Magnets For Sale
Neodymium Ring Magnets D6xd2x2mm
Small Rare Earth Neodymium Ring Magnet Ø6xØ2x2mm -Gold Plating
D6 x d2 x 2mm Gold Plated Ring Neodymium Magnets-Pull 0.76 kg
Neodymium Ring Magnets D10xd4x5mm
D10xd4x5mm Rare Earth Neodymium Ring Magnet With Nickel Coating
Powerful Rare Earth Ring Magnets Neodymium Ø10xØ4x5mm-Pull 2.5kg
Neodymium Ring Magnets D15xd6x6mm
Rare Earth Neodymium Ring Magnets D15xd6x6mm - Nickel Coating
Powerful Ring Neodymium Magnets Ø15xØ6x6mm- Pulling Force 5.1kg
Neodymium Ring Magnets D20xd4.2x5mm
Rare Earth Neodymium Ring Magnets Ø20xØ4.2x5mm With Nickel Coating
Ø20xØ4.2x5mm Strong Round Ring Neodymium Magnets-Pull Force 7.2kg
China Neodymium Ring Magnet Basic Info
Ring magnets are available for ferrite and rare earth, rare earth ring magnets are multifunctional and high-performance. Neodymium rare earth ring magnets (magnet neodymium rings) have been used since the 1980s. If you are looking for a very powerful ring magnet, NdFeB ring magnet is the most popular one for you. The north and south poles of the neodymium magnet rings can be magnetized on the opposite circular surface, or they can be magnetized radially so that the north pole is on one curved side and the south pole is on the other curved side. Most of rare earth ring magnets are supplied with axially magnetized. Neodymium rare earth ring magnets are very corrosive and need to be electroplated before use
The disadvantage of neodymium magnet rings is that they are very brittle and easy to crack. As one of the professional neodymium ring magnets manufacturers and neodymium ring magnets suppliers in China, BeiLun Meank do not recommend installing ring neodymium magnets with screws. It is safer and easier to use a countersunk ring magnet.
Strong Ring Neodymium Magnets
The neodymium ring magnets are known as the strongest (powerful) ones on the market. The minimum inner hole of our strong neodymium ring magnet can be 1mm regardless of size. Neodymium ring magnet (NdFeB magnet ring) N52 is the strongest ring magnet, which is much stronger than smco ring magnets. Most of neodymium ring magnets are axially magnetized. The holding force of a large neodymium ring magnet is as strong as 1000+ kg. You can stronger the neo ring magnets by encasing them with steel house.
Neodymium Ring Magnets Application
Due to its high permeability, neodymium ring magnets have become an ideal choice for many applications. Neodymium magnet rings can be used in scientific projects or experiments, medical applications, cabinets, water conditioning, loudspeakers and other commercial and industrial applications. Neodymium ring magnets for sale are used in many daily electrical appliances, such as vacuum cleaners, motors, generators, rotor shafts, etcWe can provide neodymium ring magnets of different sizes with several different coatings, such as nickel, zinc, epoxy resin or gold. As one of the leading neodymium ring magnets suppliers in China, we also provide waterproof magnetic rings with plastic and rubber coating.
China Neodymium Ring Magnet FAQs
01. What's the difference between ring magnets and tube magnets?
The diameter of the ring neodymium magnets is larger than the height, and the height of the tube magnets is larger than the diameter.
02. What is the minimum inner diameter of your neodymium ring magnet?
The minimum inner diameter of neodymium ring magnets is 1mm.
03. Can you supply neodymium ring magnets with waterproof coating?
Yes, as a pro neodymium ring magnets factory, we can supply neodymium ring magnets with plastic and rubber waterproof coatings.
04. What is the minimum wall thickness can you make for neodymium magnet rings?
The minimum wall thickness depends on the height of the neodymium magnet rings,usually 1mm.
05. Can you supply diametrically neodymium ring magnets?
Yes, we can. Diametrically neodymium ring magnets are supplied as custom neodymium magnets.
If you want to buy neodymium ring magnets, please contact us.
