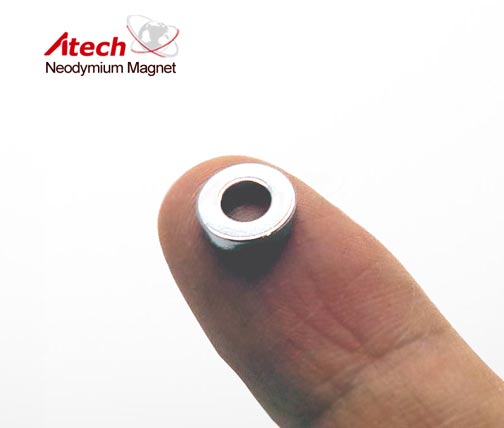

Ring/Tube Neodymium Magnets
Quantité : 1000tons Prix : 0.01-100 USD/PCS
Material |
Sintered Neodymium Iron Boron |
|
Dimensions |
Outer Diameter |
Min.3.0 mm—Max.200 mm |
Inner Diameter |
Min.1.5 mm—Max.150 mm |
|
Height |
Min.0.5 mm—Max.50 mm |
|
Tolerance |
Standard +/-0.05mm, Min.+/-0.01mm |
|
Magnetization Orientation |
Axial, Diametrical, Radial |
|
Magnetic Properties |
Grade |
Max. Operating Temperatures |
N35-N52 |
80°C (176°F) |
|
33M- 48M |
100°C (212°F) |
|
33H-48H |
120°C (248°F) |
|
30SH-45SH |
150°C (302°F) |
|
30UH-40UH |
180°C (356°F) |
|
28EH-38EH |
200°C (392°F) |
|
28AH-35AH |
230°C (428°F) |
|
Remanence(Br) |
11,300 Gauss — 14,800 Gauss |
|
Coercive Force(Hcb) |
10,000 Oersted — 12,600 Oersted |
|
Intrinsic Coercive Force(Hcb) |
11,000 Oersted — 36,000 Oersted |
|
Magnetic Energy Product (BH) |
33M GOe — 53M GOe |
|
Surface Treatment |
Ni-Cu-Ni, Nickel, Zn, Gold, Silver, Copper, Epoxy, Chemical, PTFE, Parylene, Everlube, Passivation and more. |
If you need any kinds of neodymium ring magnets, please contact us, as a professional ring magnet suppliers, HTXD is willing to offer you high quality products.
