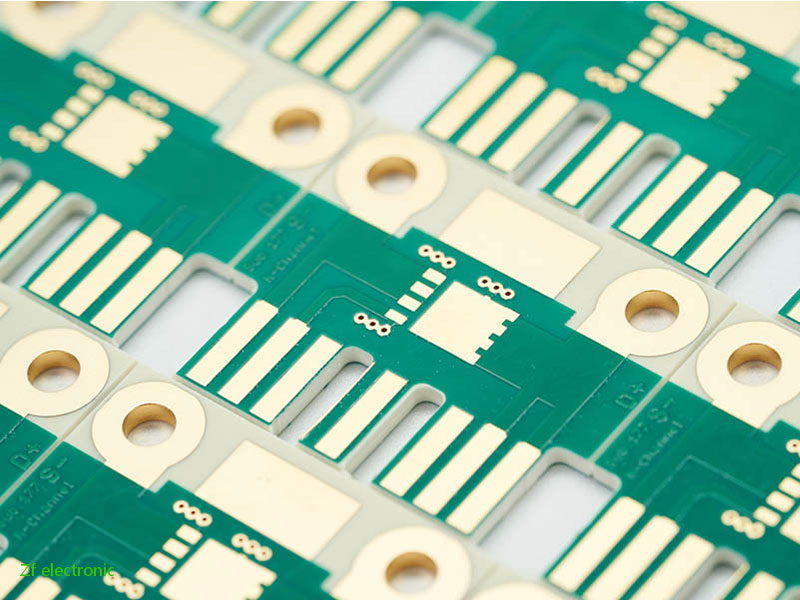

Rogers PCB
ZF Electronics, as one of the top rogers pcb manufacturers in China, can provide customers with single-sided PCB, double-sided FR4 PCB, metal core PCB, heavy copper PCB, rigid PCB and rigid-flex PCB. It provide pcb board, single layer pcb, multi layer board, rigid flex pcb, aluminum pcb,etc.
With the development of electronics, the production of electronic products also requires more and more materials, such as high-frequency materials. Rogers PCB is a type of high-frequency board, which differs from conventional FR4 PCB that there are no glass fibers between them, which is ceramic-based high-frequency rogers pcb material.
Advantages of Rogers PCB
Rogers printed circuit board boasts superior dielectric constant and high temperature stability, and its dielectric constant thermal expansion coefficient is consistent with copper foil, which can be used to improve the deficiencies of PTFE substrates;
Rogers PCB is suitable for high-speed design, as well as commercial microwave and radio frequency applications.
Due to its low water absorption, it can be used as an ideal choice for high-humidity applications, providing customers in the high-frequency board industry with the highest quality materials and related resources, and fundamentally controlling product quality.
Application of Rogers PCB materials
When the circuit frequency is higher than 500MHz, the range of materials available to the design engineer is significantly reduced.
Cellular base station antenna and power amplifier
P2P
Automotive radars and sensors
RFID tags
Rogers PCB material ceramic high-frequency board series classification
1. RO3000 series
Based on ceramic filled PTFE circuit material.
Models: RO3003, RO3006, RO3010, RO3035 high-frequency laminates
2. RT6000 series
Ceramic filled PTFE circuit material designed for high dielectric constant electronic and microwave circuits.
Models: RT6006 dielectric constant 6.15/RT6010 dielectric constant 10.2.
3. TMM series
Composite materials based on ceramics, hydrocarbons, thermoset polymers
Models: TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i.
Now the rogers pcb price is very reasonable. If you have questions about our Rogers PCB production capacity, or the specifications required for your custom project are not listed on this page, please feel free to contact us. We will reply within one workday. We will continue to provide quotation support and design support.
