Rotatable Sphincterotome
Leo Medical Co.,Ltd. is committed to providing affordable and qualified endoscope accessories in Gastroenterology, Respirology, as well as the medical devices used in PAD. LeoMed's industry related R&D ability, and stable supply chain ensure its commitment to the end users.

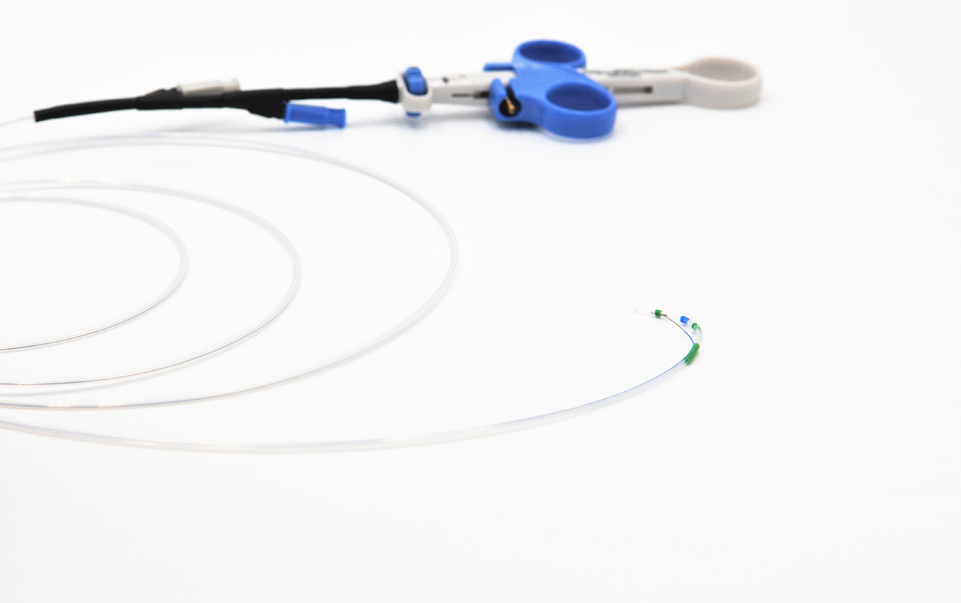

Rotatable Sphincterotome
Sphincterotomy ercp is used for cannulation of the ductal system and for triple lumen sphincterotome, if preloaded, also aids ERCP operation in the stenosis of bile duct difficult stricture.
Features of Rotatable Sphincterotome
Tapered tip enables easy cannulation.
Insulating coating minimizes the risk of tissue damage as well as endoscopic contact.
Pre-curved tip assists cannulation efficiency and reduce operation time.
Colored markers for precise positioning under endoscopic view.
Double-lumen and triple-lumen are both available.
Preloaded with 0.035" LeadCross.
360° 1: 1 rotation facilitates cannulation.
Specification of Rotatable Sphincterotome
Rotatable Sphincterotome
|
REF |
Structure |
Tip Length |
Cutting Length |
Working Length |
Compatible Guidewire |
Minimum Working Channel (mm) |
Unit/Box |
|
RST0425N |
3-lumen |
4 |
25 |
1900 |
0.035” |
2.8 |
1 |
|
RST0430N |
3-lumen |
4 |
30 |
||||
|
RST0725N |
3-lumen |
7 |
25 |
||||
|
RST0730N |
3-lumen |
7 |
30 |
Rotatable Sphincterotome (Preassembled with Guidewire)
|
REF |
Structure |
Catheter |
Tip Length |
Cutting wire Length |
Minimum Working Channel (mm) |
Guide Wire |
Unit/Box |
||||
|
Standard |
Outer Diam. |
Length |
|
Length (mm) |
Tip Shape |
Hardness |
|||||
|
RST0425NGW0206 |
3-lumen |
2.4 |
1900 |
4 |
25 |
2.8 |
0.035 |
4500 |
Straight |
Normal Stiff |
1 |
|
RST0430NGW0206 |
3-lumen |
2.4 |
1900 |
4 |
30 |
0.035 |
4500 |
||||
|
RST0725NGW0206 |
3-lumen |
2.4 |
1900 |
7 |
25 |
0.035 |
4500 |
||||
|
RST0730NGW0206 |
3-lumen |
2.4 |
1900 |
7 |
30 |
0.035 |
4500 |
||||
|
RST0425NGW0230 |
3-lumen |
2.4 |
1900 |
4 |
25 |
0.035 |
4500 |
Super Stiff |
|||
|
RST0430NGW0230 |
3-lumen |
2.4 |
1900 |
4 |
30 |
0.035 |
4500 |
||||
|
RST0725NGW0230 |
3-lumen |
2.4 |
1900 |
7 |
25 |
0.035 |
4500 |
||||
|
RST0730NGW0230 |
3-lumen |
2.4 |
1900 |
7 |
30 |
0.035 |
4500 |
||||
