RPS-20M Radio Probe System

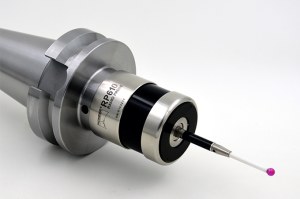

RPS-20M wireless cnc probe system contains RP610M touch probe, RSI-20M receiver and standard measuring software. The RP610M is a compact spindle probe with radio signal transmission which offers automated part set-up and in-cycle gauging on machining centers, including 5-axis machines. RPS-20M wireless touch probe system used in various specifications of machine centers, large-scale gantry machine, five-axis CNC machine tools and so on.
RPS-20M radio probe system contains RP610M touch probe, RSI-20M receiver and standard measuring software. The RP610M is a compact spindle probe with radio signal transmission which offers automated part set-up and in-cycle gauging on machining centers, including 5-axis machines. RPS-20M radio probe system used in various specifications of machine centers, large-scale gantry machine, five-axis CNC machine tools and so on.
Parameter of RPS-20M Radio Probe System
RP610M: |
|
Measuring direction |
±X,±Y,+Z |
Arbitrary direction swinging angle |
X-Y±15°, Z +5 mm |
Repeatability (2σ) |
≤ 2 μm; |
Trigger force in Z direction |
600±30(g) |
Trigger force in X-Y direction |
50-100(g) |
Radio signal receiving/sending distance |
>14m |
Model of the standard stylus |
M4-P50-RB6-S36 |
Model of the battery |
14250,3.6 (V), 2 Pcs |
Seal grade |
IP68 |
RSI-20M |
|
Radio signal receiving/sending distance |
>14m |
Frequency of the radio signal |
2.4-2.483G |
Quantity of the radio channel |
16 |
Input voltage |
24±10% VDC |
Output load current |
50mA |
Length of the cable |
8m |
Length of the cable retaining tube |
2m |
Seal grade |
IP68 |
Application of RPS-20M Radio Probe System
RPS-20M has a transmission distance of up to 14 m, which is suitable for five-axis machining centers and large machine tools equipped with complex fixture components.
The radio probe transmits signals by radio and can be applied to the measurement of deep cavity workpieces.
Radio probes are often used on double-head lathes to process large parts such as automobile axles
Technical Characteristics of RPS-20M Radio Probe System
Probe switch on/off method: :Range on/off、M code on/off;
Radio code signals are used to transmit information between the probe and the receiver. The time to transmit and to decode a group of signals is less than 1ms;
The transmission frequency of the radio signal is within 2.4 G-2.483 G, the number of transmission channel is 16;
Output four kinds of SSR signals to machine control system when probe is in the states of trigger、error、probe batteries low and output pulse;
The RSI-20 receiver can change its logical state of the output signal by setting;
The LED lights in the receiver show the working status of the probe system.
Pioneer is a professional probe factory, we provide touch probe, cnc machine probe, wireless probe cnc, cnc touch probe wireless, probe manufacturing and etc. Want to know more? Please contact us.
