RPS-L11M Radio Probe System
RPS-L11M radio probe system contains TP200 touch probe, RPDM transceiver, RSI-20M receiver and standard measuring software, applied in lathe probe, multi-tasking machines probe and turning machine probe. The RPDM is a radio frequency probe designed to be turret-mounted for part setting and inspection on turning centres. RPS-L11M radio probe system is for workpiece inspection and job set-up on multi-tasking machines, lathes and turning machines.
RPS-L11M Radio Probe System
RPS-L11M radio probe system contains TP200 touch probe, RPDM transceiver, RSI-20M receiver and standard measuring software, applied in lathe probe, multi-tasking machines probe and turning machine probe. The RPDM is a radio frequency probe designed to be turret-mounted for part setting and inspection on turning centres. RPS-L11M radio probe system is for workpiece inspection and job set-up on multi-tasking machines, lathes and turning machines.
RPS-L11M Radio Probe System

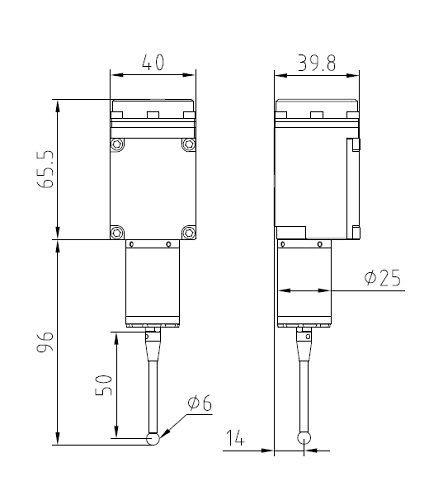

TP200+RPDM: |
|
Measuring direction |
±X,±Y,+Z |
Arbitrary direction swinging angle |
X-Y±15°, Z +5 mm |
Repeatability (2σ) |
≤ 2 μm; |
Trigger force in Z direction |
600±30(g) |
Trigger force in X-Y direction |
50-100(g) |
Radio signal receiving/sending distance |
>14m |
Model of the standard stylus |
M4-P50-RB6-S36 |
Model of the battery |
14250,3.6 (V), 2 Pcs |
Seal grade |
IP68 |
RSI-20M |
|
Radio signal receiving/sending distance |
>14m |
Frequency of the radio signal |
2.4-2.483G |
Quantity of the radio channel |
16 |
Input voltage |
24±10% VDC |
Output load current |
50mA |
Length of the cable |
8m |
Length of the cable retaining tube |
2m |
Seal grade |
IP68 |
Application of RPS-L11M Radio Probe System
RPS-L11 is for workpiece inspection and job set-up on multi-tasking machines and lathes.
PRS-L11 often used in turning machine to measure workpiece and set datum point.
It provide automated on-machine measurement of component position and alignment. Set up faster, improve quality and reduce scrap.
Technical Characteristics of RPS-L11M Radio Probe System
The stylus connector of TP200 probe is protected by a metal cover and a rubber seal cover;
Switch on/off method of RPD/RPDM radio signal emitter: M code on/off;
Radio code signals are used to transmit information between RPD/RPDM radio signal emitter and the receiver. The time to transmit and to decode a group of signals is less than 1ms;
Globally recognised 2.4 GHz waveband – compliant with radio regulations in all major markets.
The RSI-20 receiver out put trigger、error、probe batteries low and output pulse four kinds of signals. And it's logical state can change normally closed and normally open.
The indicating lights in RSI-20 and RPDM show the working status of the probe system
For more information about touch probe and pioneer machine and tool, please feel free to contact us!
