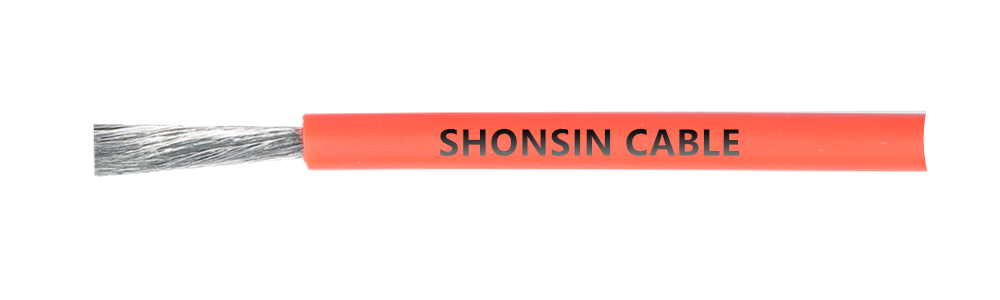

RV CABLE
IEC Code：60227IEC02 RV & 60227IEC06 RV
Farrow Cable H05VV-K
The letter R stands for soft wire;
The letter V stands for insulator polyvinyl chloride (PVC);
Features of RV Cable
Rated Temperature: -30℃ ~ 70℃
Rated Voltage: <1.5mm2 300V/500V; ≥1.5m<span style="font-family: 宋体">㎡; 450V/750V
Fire Resistance: UL VW-1 & CSA - FT1
Conductor: 0.3-70mm2
Insulation: Extruded PVC, 15 mils (0.38mm) minimum average thickness, 13 mils (0.33mm) minimum thickness at any point.
Standard: GB 5023、IEC60227、HD VDE21.3 S3
RoHS & REACH compliance
Resistant to acids, oils, alkalis, moisture & fungi.
Use: Internal wiring of appliances.
Specifications of RV Cable
|
Cable Type |
Conductor |
Overall |
Weight |
Rated |
|
|
Cross Section |
Construction |
||||
|
RV |
0.12 |
7x0.15 |
1.25 |
0.27 |
300V/500V |
|
0.2 |
12x0.15 |
1.55 |
0.4 |
||
|
0.3 |
16x0.15 |
1.85 |
0.58 |
||
|
0.4 |
23x0.15 |
2 |
0.61 |
||
|
0.5 |
28x0.15 |
2.15 |
0.88 |
||
|
0.75 |
42x0.15 |
2.5 |
1.22 |
||
|
1 |
32x0.2 |
2.7 |
1.57 |
||
|
1.5 |
48x0.2 |
3.2 |
2.23 |
450V/750V |
|
|
2.5 |
77x0.2 |
3.75 |
3.2 |
||
|
4 |
80x0.25 |
4.35 |
5.03 |
||
|
6 |
84x0.3 |
5.15 |
7.45 |
||
|
10 |
91x0.37 |
6.7 |
12.2 |
||
|
16 |
147x0.37 |
8.3 |
18.9 |
||
|
25 |
190x0.41 |
10.45 |
28.4 |
||
|
35 |
266x0.41 |
11.4 |
38.2 |
||
|
50 |
377x0.41 |
13.4 |
52.0 |
||
Shonsin Electronics Co., Ltd is a professional custom wire and cable manufacturers, we provide silicone flexible cable, bulk hook up wire, flat cable and etc. Want to know more? Contact us now.
