S&A air cool process chiller for welding cell of metal stamping

Quantité : 1000sets   Prix : USD1788

S&A air cool process chiller for welding cell of metal stamping

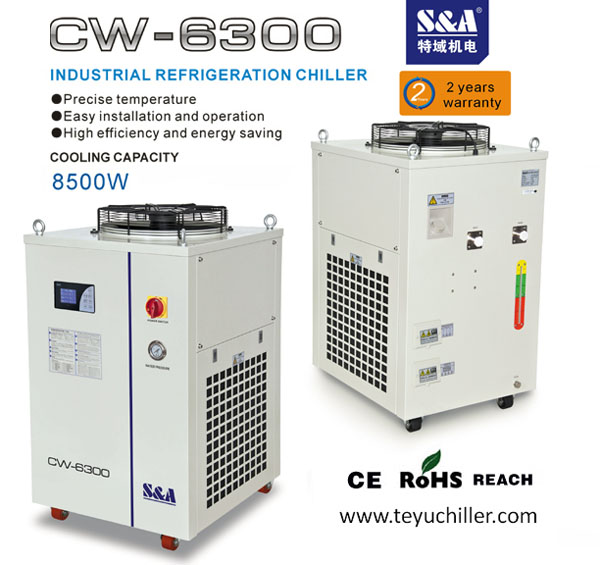

S&A CW-6300 series is air cool process chiller,with intelligent temperature control,completed configuration,perfect protection and alarm system.

CW-6300 chiller is fit for cooling welding cell of metal stamping, it is popular for its 2 temperature control modes as constant temperature and intelligent temperature control. Since January 2016, the warranty period of S&A chiller has extended to 2 years.

S&A laser chiller CW-6300 features

1. 8500W cooling capacity; optional environmental refrigerant;

2.±1℃ precisely temperature control;

3.The intelligent temperature controller has 2 control modes, applicable to different applied occasions;

with various setting and display functions;

4.Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection,

water flow alarm and over high / low temperature alarm;

5.Multiple power specifications; CE approval; RoHS approval;

6. Long working life and simple operation;

Model

CW-6300AN

CW-6300BN

CW-6300EN

Voltage

AC 1P 220V

AC 1P 220V

AC 3P 380V

Frequency

50Hz

60Hz

50Hz

Current

3~20 A

3~20 A

2~6A

Compressor power

2.8KW

2.7KW

2.6KW

3.73HP

3.6HP

3.46HP

Refrigeration capacity

28498Btu/h

27850Btu/h

27986Btu/h

8.35KW

8.16KW

8.2KW

7181Kcal/h

7017Kcal/h

7052Kcal/h

Refrigerant

R-22 / R-410a

Refrigerant charge

2150g

2100g

2350g

Precision

±1℃

Reducer

Capillary

Protection

Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power

0.37~1.1KW

Tank capacity

45L

Inlet and outlet

Rp1"

Max. lift

28-53M

Max. flow

70-116L/min

N.W

150Kgs

G.W

163Kgs

Dimension

83 x 65 x 117cm (L x W x H)

Package dimension

95 x 85 x 140cm (L x W x H)

Note: the specification of water pump is selected according to different application; other electric sources can be customized.
