S&A air cooled water chiller for resistance welding machine
Quantité : 1000sets Prix : USD971
S&A air cooled water chiller for resistance welding machine

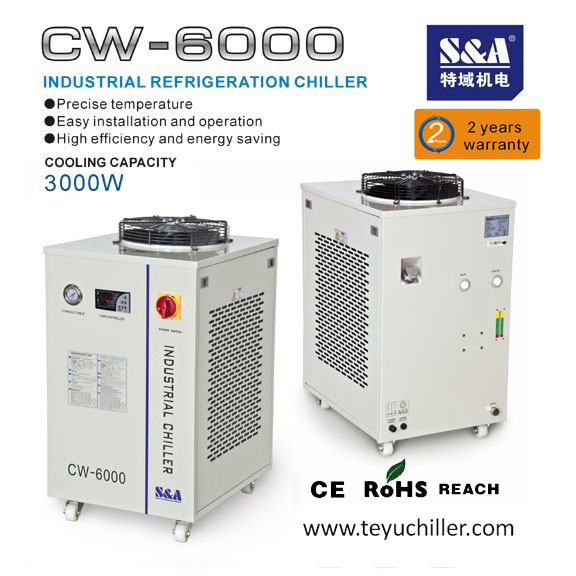

CW-6000 air cooled water chiller with compressor refrigeration is developed and produced by S&A company of China, it is applied for cooling resistance welding machine.
CW-6000 water chiller has 3000W cooling capacity with ±0.5℃ stability, it has 2 temperature control modes as constant temperature and intelligent temperature control. Under intelligent mode, the water temperature is adjusted according to ambient temperature.
Water chiller parameter:
|
Model |
CW-6000AH |
CW-6000BH |
CW-6000DH |
CW-6000AI |
CW-6000BI |
CW-6000DI |
CW-6000AN |
CW-6000BN |
CW-6000DN |
|
Voltage |
220V |
220V |
110V |
220V |
220V |
110V |
220V |
220V |
110V |
|
Frequency |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
50Hz |
60Hz |
60Hz |
|
Current |
1~4.5A |
1~10A |
1.5~5.5A |
1.5~10.5A |
2~6A |
2~11A |
|||
|
Compressor power |
0.965KW |
0.895KW |
1.12KW |
0.965KW |
0.895KW |
1.12KW |
0.965KW |
0.895KW |
1.12KW |
|
1.28HP |
1.22HP |
1.52HP |
1.28HP |
1.22HP |
1.52HP |
1.28HP |
1.22HP |
1.52HP |
|
|
Refrigeration capacity |
10286Btu/h |
9502Btu/h |
10724Btu/h |
10286btuh |
9502Btu/h |
10724Btu/h |
10286btuh |
9502Btu/h |
10724Btu/h |
|
3.015KW |
2.785KW |
3.145KW |
3.015KW |
2.785KW |
3.145KW |
3.015KW |
2.785KW |
3.145KW |
|
|
2592Kcal/h |
2395kcal/h |
2711Kcal/h |
2592kcal/h |
2395kcal/h |
2711Kcal/h |
2592kcal/h |
2395Kcal/h |
2711Kcal/h |
|
|
Refrigerant |
R-22/R-410a |
||||||||
|
Refrigerant charge |
800g |
750g |
650g |
800g |
750g |
650g |
800g |
750g |
650g |
|
Precision |
±0.5℃ |
||||||||
|
Reducer |
Capillary |
||||||||
|
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm |
||||||||
|
Pump power |
0.05KW |
0.1KW |
0.37~0.75KW |
||||||
|
Tank capacity |
15L |
||||||||
|
Inlet and outlet |
Rp1/2" |
||||||||
|
Max. lift |
12M |
25M |
28~53M |
||||||
|
Max. flow |
13L/min |
16L/min |
70L/min |
||||||
|
N.W |
60Kgs |
72Kgs |
|||||||
|
G.W |
70Kgs |
82 Kgs |
|||||||
|
Dimension |
67 X 47 X 89 cm (L X W X H) |
||||||||
|
Package dimension |
74 X 60 X 109 cm(L X W X H) |
||||||||
TEL: +86-20-89301885, FAX: +86-20-84309967
SKYPE: teyuchiller
Email: marketing@teyu.com.cn, Website: http://www.teyuchiller.com
About S&A Brand
S&A produces more than 60000 units of industrial chillers by year,we always insist on”Quality First” in design and production.
“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad,and export rate reaches above 60%.
