S&A industrial water chiller for induction heater

Quantité : 1000sets   Prix : USD1192

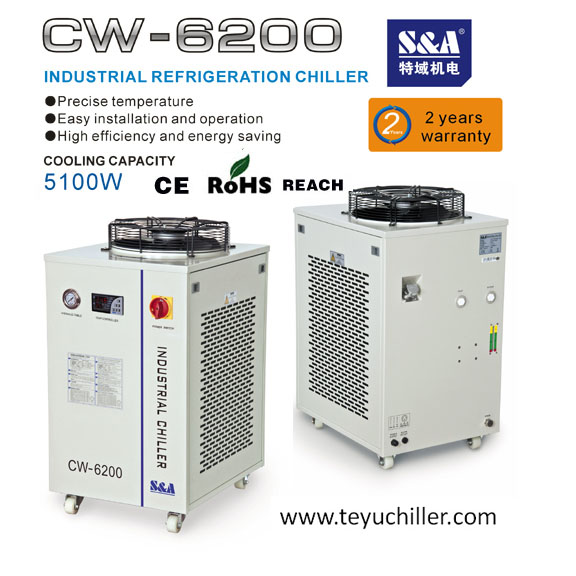

S&A industrial water chiller for induction heater

Industrial water chiller CW-6200 is developed and produced by S&A company. It is applied for cooling induction heater. CW-6200 has 5.1KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm;

Chillers CW-6200 parameter:

Model

CW-6200AH

CW-6200BH

CW-6200AI

CW-6200BI

CW-6200AN

CW-6200BN

Voltage

220V

220V

220V

220V

220V

220V

Frequency

50Hz

60Hz

50Hz

60Hz

50Hz

60Hz

Current

1~8.2A

1~8A

1.5~8.7A

1.5~8.5A

2~9.2A

2~9A

Compressor power

1.68KW

1.645KW

1.68KW

1.645KW

1.68KW

1.645KW

2.28HP

2.24HP

2.28HP

2.24HP

2.28HP

2.24HP

Refrigeration capacity

17510Btu/h

17640Btu/h

17510Btu/h

17640Btu/h

17510Btu/h

17640Btu/h

5.13KW

5.17KW

5.13KW

5.17KW

5.13KW

5.17KW

4420Kcal/h

4446Kcal/h

4420Kcal/h

4446Kcal/h

4420Kcal/h

4446Kcal/h

Refrigerant

R-22/R-410a

Refrigerant charge

1100g

1200g

1100g

1200g

1100g

1200g

Precision

±0.5℃

Reducer

Capillary

Protection

Overcurrent protection for compressor, flow alarm, over temperature alarm

Pump power

0.05KW

0.1KW

0.37~0.75KW

Tank capacity

15L

Inlet and outlet

Rp1/2"

Max. lift

12M

25M

28~53M

Max. flow

13L/min

16L/min

70L/min

N.W

69Kgs

82Kgs

G.W

79Kgs

92Kgs

Dimension

67 X 47 X 89 cm(L X W X H)

Package dimension

74 X 60 X 109 cm(L X W X H)

Note: the specification of water pump is selected according to different application; other electric sources can be customized; heating and higher temperature control precision functions are optiona .

CONTACT S&A

TEL: +86-20-89301885,

FAX: +86-20-84309967

SKYPE: teyuchiller

Email: marketing@teyu.com.cn

Website: http://www.teyuchiller.com

About S&A Brand

S&A produces more than 60000 units of industrial chillers by year,we always insist on”Quality First” in design and production.

“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad,and export rate reaches above 60%.

Localisation : No.50, Zhongchuang Road, Zhongcun town, Panyu District, Guangzhou, China , 511495 Guangzhou,
