S&A re-circulating water chiller for electronic product heatsink
Quantité : 1000sets Prix : USD583

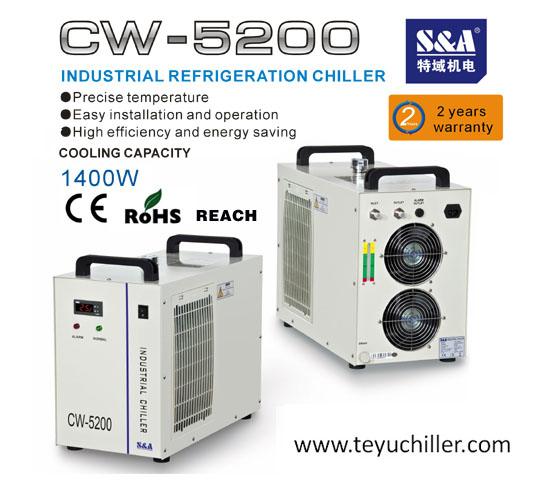

S&A re-circulating water chiller for electronic product heatsink
S&A CW-5200 re-circulating water chiller is suitable to cool electronic product heatsink. Its cooling capacity up to 1.4KW and the thermoelectric control in ±0.3℃ precision and temperature control range in 5-35℃. S&A chiller has CE，RoHS and REACH approval.
CW-5200 water chiller parameter:
|
Model |
CW-5200AG |
CW-5200BG |
CW-5200DG |
CW-5200TG |
CW-5200AH |
CW-5200AI |
CW-5200BI |
CW-5200DI |
|
Voltage |
220V |
220V |
110V |
220V |
220V |
220V |
220V |
110V |
|
Frequency |
50Hz |
60Hz |
60Hz |
50/60Hz |
50Hz |
50Hz |
60Hz |
60Hz |
|
Current |
2.4~3.1A |
2.6~3.3A |
4.5~6.5A |
2.4~3.3A |
2.4~3.1A |
2.4~3.1A |
2.6~3.3A |
4.5~6.5A |
|
Compressor power |
0.52KW |
0.5KW |
0.68KW |
0.49/0.57KW |
0.52KW |
0.52KW |
0.5KW |
0.68KW |
|
0.71HP |
0.68HP |
0.93HP |
0.66/0.77HP |
0.71HP |
0.71HP |
0.68HP |
0.93HP |
|
|
Refrigeration capacity |
5084Btu/h |
4982Btu/h |
5186Btu/h |
4825/5797Btu/h |
5084Btu/h |
5084Btu/h |
4982Btu/h |
5186Btu/h |
|
1.49KW |
1.46KW |
1.56KW |
1.41/1.70KW |
1.49KW |
1.49KW |
1.46KW |
1.56KW |
|
|
1281Kcal/h |
1256Kcal/h |
1307Kcal/h |
1219/1465Kcal/h |
1281Kcal/h |
1281Kcal/h |
1256Kcal/h |
1307Kcal/h |
|
|
Refrigerant |
R-22 / R-134a / R-410a |
|||||||
|
Refrigerant charge |
360g |
380g |
350g |
360/380g |
360g |
360g |
380g |
350g |
|
Precision |
±0.3℃ |
|||||||
|
Reducer |
Capillary |
|||||||
|
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm |
|||||||
|
Pump power |
0.03KW |
0.05KW |
0.1KW |
|||||
|
Tank capacity |
6L |
|||||||
|
Inlet and outlet |
External Φ10mm brass connector |
Φ10mm speedy connector |
||||||
|
Max. lift |
10 M |
12M |
25M |
|||||
|
Max. flow |
10 L/min |
13L/min |
16 L/min |
|||||
|
N.W |
26 Kgs |
|||||||
|
G.W |
29 Kgs |
|||||||
|
Dimension |
58 X 29 X 47 cm (L X W X H) |
|||||||
|
Package dimension |
70 X 43 X 58 cm (L X W X H) |
|||||||
TEL: +86-20-89301885, FAX: +86-20-84309967
SKYPE: teyuchiller
Email: marketing@teyu.com.cn Website: http://www.teyuchiller.com
About S&A Brand
S&A produces more than 60000 units of industrial chillers by year,we always insist on”Quality First” in design and production.
“S&A” and “TEYU” have been enjoying high reputation among hundreds of manufacturers which are from both at home and abroad,and export rate reaches above 60%.
