S&A Recirculating water chiller for reflow oven
Quantité : 1000sets Prix : USd1098
S&A Recirculating water chiller for reflow oven

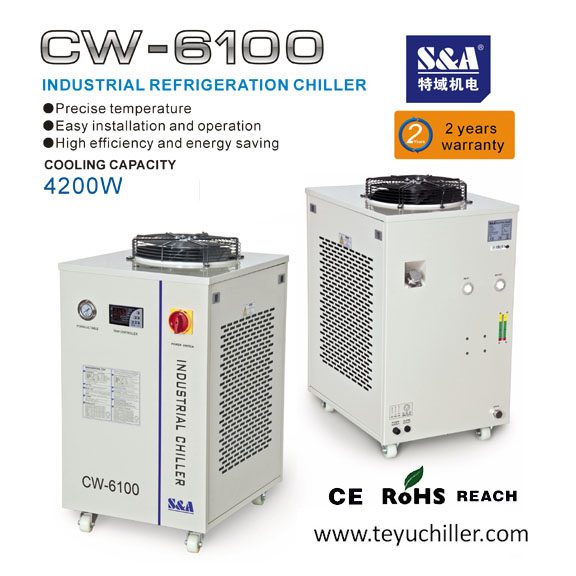

S&A recirculating water chiller CW-6100 is developed and produced by S&A supplier of China. It is fit for cooling reflow oven. CW-6100 has 4.2KW cooling capacity, ±0.5℃ stability, and Multiple alarm functions: compressor time-delay protection, compressor overcurrent protection, water flow alarm and over high / low temperature alarm; Since January 2016, the warranty period of S&A chiller has extended to 2 years.
CW-6100 water chiller parameter:
|
Model |
CW-6100AH |
CW-6100BH |
CW-6100AI |
CW-6100BI |
CW-6100AN |
CW-6100BN |
|
Voltage |
220V |
220V |
220V |
220V |
220V |
220V |
|
Frequency |
50Hz |
60Hz |
50Hz |
60Hz |
50Hz |
60Hz |
|
Current |
1~6.5A |
1.5~7A |
2~7.5A |
|||
|
Compressor power |
1.38KW |
1.29KW |
1.38KW |
1.29KW |
1.38KW |
1.29KW |
|
1.84HP |
1.72HP |
1.84HP |
1.72HP |
1.84HP |
1.72HP |
|
|
Refrigeration capacity |
14483Btu/h |
14092Btu/h |
14483Btu/h |
14092Btu/h |
14483Btu/h |
14092Btu/h |
|
4.24KW |
4.13KW |
3.38KW |
4.24KW |
4.13KW |
3.38KW |
|
|
3650Kcal/h |
3551Kcal/h |
3650Kcal/h |
3551Kcal/h |
3650Kcal/h |
3551Kcal/h |
|
|
Refrigerant |
R-22/R-410a |
|||||
|
Refrigerant charge |
950g |
900g |
950g |
900g |
950g |
900g |
|
Precision |
±0.5℃ |
|||||
|
Reducer |
Capillary |
|||||
|
Protection |
Overcurrent protection for compressor, flow alarm, over temperature alarm |
|||||
|
Pump power |
0.05KW |
0.1KW |
0.37~0.75KW |
|||
|
Tank capacity |
15L |
|||||
|
Inlet and outlet |
Rp1/2" |
|||||
|
Max. lift |
12M |
25M |
28~53M |
|||
|
Max. flow |
13L/min |
16L/min |
70L/min |
|||
|
N.W |
65Kgs |
77Kgs |
||||
|
G.W |
75Kgs |
87Kgs |
||||
|
Dimension |
67 X 47 X 89 cm (L X W X H) |
|||||
|
Package dimension |
74X 60 X 109 cm (L X W X H) |
|||||
Note: the specification of water pump is selected according to different application; other electric sources can be customized; heating and higher temperature control precision functions are optiona
