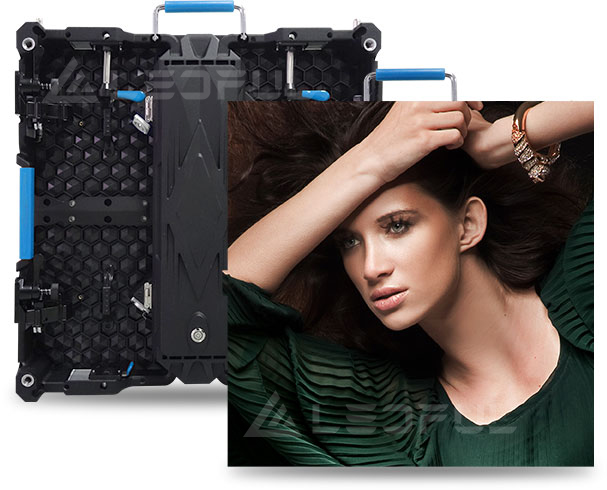

S Series
Prix : 100USD
Rental Event LED Display
SI2.9 | SI3.9 | SI4.8
SO3.9 | SO4.8 | SO5.9
Front Maintenance
Curved Installation
No Light Leakage
Light and Thin
Parameter
|
S Series Outdoor |
SO 3.9 |
SO 4.8 |
SO 5.9 |
|
Pixel Pitch(mm) |
3.91mm |
4.81mm |
5.95mm |
|
Pixel Matrix Per Sq.m |
65536 |
43264 |
28224 |
|
Pixel Configuration |
SMD1921 |
SMD2727/1921 |
SMD2727 |
|
Brightness (nits) |
≥6500 |
≥5500 |
≥6500 |
|
Scan |
43108 |
43113 |
43107 |
|
Cabinet Resolution |
128×128 |
104×104 |
84×84 |
|
Power Con. (Max / Avg) |
790/ 250 w/sq.m |
720 / 220 w/sq.m |
650/ 220 w/sq.m |
|
Refresh Rate (HZ) |
3840 |
3840 |
1920 |
|
Cabinet Weight |
8kg / 17.6Ib |
||
|
Module Dimension |
250x250mm / 0.82x0.82feet |
||
|
Cabinet Dimension |
500x500x85mm / 1.64x1.64x0.28feet |
||
|
Cabinet Material |
Die-casting Aluminum |
||
|
Service Access |
Front / Rear |
||
|
Grey Scale (bit) |
14 |
||
|
Viewing Angle (H/V) |
140 / 140 |
||
|
IP Rate |
IP65 |
||
|
Input Voltage (AC) |
110 / 240 |
||
|
S Series Indoor |
SI 2.9 |
SI 3.9 |
SI 4.8 |
|
Pixel Pitch(mm) |
2.976mm |
3.91mm |
4.81mm |
|
Pixel Matrix Per Sq.m |
112896 |
65536 |
43264 |
|
Pixel Configuration |
SMD1515 |
SMD2121 |
SMD2121 |
|
Scan |
43128 |
43116 |
43113 |
|
Cabinet Resolution |
168×168 |
128×128 |
104×104 |
|
Power Con. (Max / Avg) |
576/ 180w/sq.m |
504 / 150w/sq.m |
520 / 160w/sq.m |
|
Refresh Rate (HZ) |
3840 |
||
|
Cabinet Weight |
8kg / 17.6Ib |
||
|
Cabinet Material |
Die-casting Aluminum |
||
|
Module Dimension |
250x250mm / 0.82x0.82feet |
||
|
Cabinet Dimension |
500x500x85mm / 1.64x1.64x0.28feet |
||
|
Service Access |
Front / Rear |
||
|
Brightness (nits) |
1000 |
||
|
Grey Scale (bit) |
16 |
||
|
Viewing Angle (H/V) |
140 / 140 |
||
|
IP Rate |
IP43 |
||
|
Input Voltage (AC) |
110 / 240 |
||
* Specifications and photos are subject to change without prior notice.
Front Maintenance
The magnet LED modules can be dismantled by tools on front side.
Curved Installation
Curved with every 2.5° between -10°and 10°, which can make convex and concave.
Ultra Fast Response
The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.
No light leakage trouble
No light leakage design with specific strips on side of cabinet and behind neighbour module.
Wide Viewing Angle
Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Faster & Easier Installation
Hanging or stacking, S series with light and thin features makes installation faster and easier.
We provide small led display and OOH led display,RFQ today.
