S235JR steel

S235JR steel
Grade: S235JR
Type: hot-rolled structural steel, non-alloy structural steels
Standard: EN10025-2
Specification: Thickness: 5-200mm ||||||Width: 1500-3200mm||||||Length: 6000-12000mm
Application: S235JR, S235J0 and S235j2 steel is a structural steel grade which be used in riveted, bolted, or welded construction of bridges and buildings.
steel plateSend e-mail: sdjs@firsteelplate.comchat onlineLeave a message
S235JR Introduction
S235JR steel

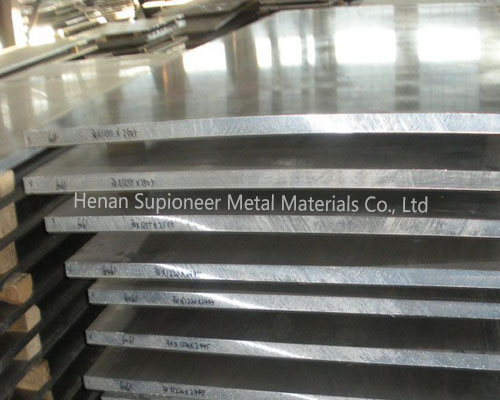

We supply S235 structural steel plate under the EN 10025 specification. This structural steel is mainly used in the construction marketplace. We are able to meet these demands with a range of S235 structural steel plates to suit your specific requirements.
S symbol for structural steel
235 indication of the min specified yield strength for thickness of under 16mm.
JR symbol 20 temperature impact test.
J0 symbol 0 temperature impact test
J2 symbol -20 temperature impact test
This is common carbon steel plate in S235JR, S235J0 and S235J2 steel grade.
We had many stock size in carbon steel plate, in ASTM A36, S235JR, S235J0, S235J2, SS400, ST37-2 and so on.
S235J0 Steel Application
S235JR, S235J0 and S235j2 steel is a structural steel grade which be used in riveted, bolted, or welded construction of bridges and buildings.
S235JR steel
S235JR steel Chemical Composition Analysis
Steel grade C Mn Si P S N Cu Other CEV
max. max. max. max. max. max. max. max. max.
% % % % % % % % %
Nominal thickness Nominal thickness
mm mm
≤16 >16 >40 ≤30 >30 >40
≤40 ≤40 ≤125
S235JR 0,17 0,17 0,20 1,40 - 0.035 0,035 0,012 0,55 - 0,35 0,35 0,38
S235JR steel Mechanical Properties
Minimum yield strength Reh Tensile strength Rm Minimum elongation - A Notch impact test
MPa MPa Lo = 5,65 * √So (%) Temperature Min. absorbed energy
Steel grade Nominal thickness Nominal thickness Nominal thickness
mm mm mm
≤16 >16 >40 >63 >80 >100 >3 >100 >3 >40 >63 >100 20°C 27J
≤40 ≤63 ≤80 ≤100 ≤125 ≤100 ≤125 ≤40 ≤63 ≤100 ≤125
S235JR 235 225 215 195 360-510 350-500 26 25 24 22 20 27
