S300 Sewer Drain Pipe Inspection Camera For Rental
IPS designs s300 robotic sewer camera for inspection of sewer lines with a diameter from 300mm up to 2000mm.Ou new camera head is equipped with super powerful led lights and our magic illumination technology.Then light is better proportioned,so that every spot get enought and optimized illumination.
We have optional automatic cable drum.You have access to roll in and roll out cable on your wireless joysticks.And the joysticks also provide easy crawler motion control,or lowering the camera head,focus on pipe defects to get good image of it.
Technical data | |
Product classification | Pan and tilt camera |
Inspection range | approx.DN 300 and up |
Dimension | approx.290mm |
Weight | approx. 17 kg |
Tractor operation | yes |
Camera reorient | Yes |
Focus | Manual focus |
Lighting | 4 led lights. |
Protection class | IP 68 |
Permissible ambient temperature | -20 to 55 celsius |
Test pressure | 10-15PSI |
Pressure monitoring | Integrated pressure sensor continuously monitors inner pressure |
Panning range | 180-degree endless pan |
Viewing range | +/-120° |
Angle of rotation | Continuous |
Sensor (inch) | 1/4“ |
Sonde | no |
TV standard | HD |
Explosion protection | optional |
Image resolution | 540TVL |
Detail Image:

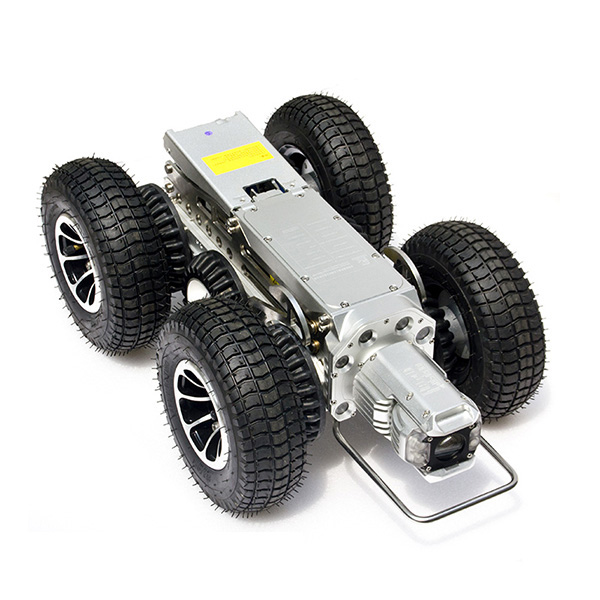

- * Crawler for DN200-2000mm lateral sewer mainlines.
- * Steerable to traverse bend and navigate over obstacles.
- * Manual controlled camera-lift to ensure the camera head in the center position of the pipe.
- * Two sizes tires inside the package.
- * 4-wheel drive can travel forward,reverse and turn around.
Camera Head Camera sensor:
- * 1/4”540TVL Sony CCD
- * Sensitivity: 0.01 LUX;Capable of working in the dark
- * Zoom: 120 times (10X optical, 12X digital)
- * Illumination: 4*10w High brightness LED lights
- * Rotation: 360°pan, 180°tilt
- * Auto leveling;Auto focus 55
- * Working temperature: -20℃~55℃
- * Diameter: 90mm
- * Weight: 2.2KG
- * Waterproof level: IP68
- * 12.1“ sunlight viewable touch control LCD
- * Record inspections to 64GB SSD
- * Water-proof standard: IP53
- * All featured software regulates crawler motion,cable
reel winding up and persistently measures pressure,
slope and distance,ect.
- * Size: L426mm*W266mm*H52mm
SD9991E+ Cable Reel
- * Optional manual or auto cable winding up component;
- * Material: Aviation aluminum+PC plastic
- * Meter-counter: Distance constantly displayed on screen;
- * erro<10cm </span>
- * Waterproof: IP53;
- * Reinforced semi-rigid cable;
- * Load capacity: 150KG.OD: 9mm
- *120m standard cable length
IPS was started with a simple goal ,to provide our Chinese customers ,who were engaded in water monitoring and/or municipal sewer line inspection and rehabilitation ,with affordable devices.
* In 2009,we began our business with self-made multi-direction endoscope.But it was not very sucessful at that time.
* In 2013,we came back with SINGA crawlers,which was equipped with powerful illumination to capture and record pipe defects.
* In2015,we added explosion-proof and motor-driven cable drum to our carriage.And setted out to develop our own UV curing,3D sonar/laser system.
Thanks to continuous efforts in customers' oriented technical innovations and excellent service ,IPS has witnessed a series of huge success.Now we are the leading manufacturer of pipeline CCTV inspection equipment in China ,and we are ready to lead international pipe inspection&rehabilitation industry in the future.
