SABER IP 20X
IP 20X FHD IP PTZ USB 3.0 Video Camera
CRYSTAL CLEAR
IN FULL HD
Utilizing the highest quality sensors and a multi-glass lense, the Blade series delivers class-leading optics and crystal clear lifelike video that makes your video conference feel like you are sitting together in the same room.
20x + 2x Zoom
20 x Optical + 2 x Digital zoom gets you up close and personal. Even in a large room, this lossless zoom will get right into the details, with smooth motion and accurate precision, with both manual and autofocus options at your fingertips.
Saber IP 20X Full HD USB 3.0 PTZ Camera Highlights
Adopts most advanced DSP, 1/2.8 inch 5MP sensor
20x optical zoom video camera + 2x Digital Zoom Video Camera, with 60°FOV
1080p30 video over IP
Supports H.264, H.265 encoding; POE
Outputs: IP, HDMI, SDI and USB3.0
Able to set IP address via OSD menu with the IR Remote Controller supplied
Automatic access to the IP address
Special Focusing Algorithm - fast and precise performance when the camera's zooming
WDR, 3D Noise Reduction feature
Standard IP Visca, Serial Visca, Pelco-P/D control protocol; IP Visca over TCP/UDP
Saber IP 20X Full HD USB 3.0 PTZ Camera Technical Specification
Model |
IP-20FHD60 |
|||
Sensor |
1/2.8 inch, 5mega pixel high quality CMOS sensor |
|||
Video Format |
HDMI |
IP |
SDI |
USB3.0 |
1080p60/50/30/25, |
Main stream: |
1080p60/50/30/25; |
1080p60/50/30/25 |
|
720p60/50/30/25, |
1920x1080p60, |
720p60/50/30/25 |
720p60/50/30/25 |
|
1080i60/50 |
Substream: |
1080i60/50 |
|
|
|
1280x720,704x576 |
|
USB3.0&USB2.0 |
|
|
640x480,352x288 |
|
1024x576p30, 960x540p30 |
|
|
|
|
640x360p30, 352x288p30 |
|
Zoom |
20x optical zoom & 2x digital zoom |
|||
FOV |
60°(diagonal) |
|||
F.no. |
Wide: F1.5(Wide)~3.0(Tele) |
|||
Focal Length |
f=5.2(near)~98mm(far) |
|||
Preset |
10 via remote controller; 128 via serial port; preset precision: 0.1° |
|||
Rotation Angle |
Pan: -170° ~ +170°; Tilt: -35° ~ +90° |
|||
Rotation Speed |
Pan: 0°~120°/s ; Tilt: 0°~80°/s |
|||

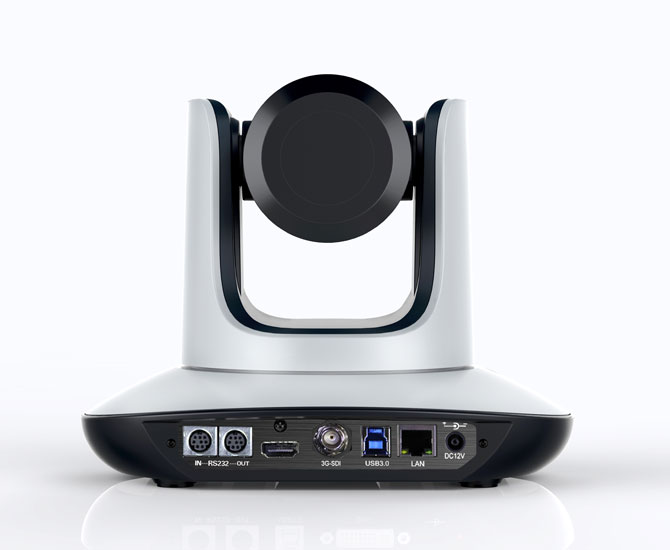

Control Port |
RS232 / RS485/RJ45 |
|||
Video Port |
HDMI/ RJ45/SDI/USB3.0/USB2.0 |
|||
Network Speed |
1000M |
|||
Noise Reduction |
2D&3D |
|||
SNR |
>50dB |
|||
Minimum Lux |
0.01 lux |
|||
White Balance |
Auto / Manual/Auto Tracking/OnePush/Indoor/Outdoor/ |
|||
Anti Flicker |
50Hz/60Hz/OFF |
|||
D/N Mode |
Supported |
|||
Gamma |
Supported |
|||
Mirror Image |
Supported |
|||
PanTilt Flip |
Supported |
|||
Iris |
Auto / Manual/ |
|||
Electric Shutter |
Auto / Manual/ |
|||
BLC |
Auto / Manual/ |
|||
Focus |
Auto / Manual/ |
|||
Video Encoding |
H.264/H.265 |
|||
Bit Rate Control |
Variable Bit Rate, Constant Bit Rate |
|||
Video Bit Rate |
1024Kbps~30720Kbps |
|||
Frames |
50HZ: 1fps~50fps 60HZ: 1fps~60fps |
|||
IP Protocol |
TCP/IP, HTTP, RTSP, Onvif, DHCP |
|||
POE |
Supported |
|||
Input Voltage |
DC12V, 2A |
|||
Dimension |
220mm×173mm×190mm |
|||
Net Weight |
1.25KGS(2.8LBS) |
The founder of Angekis has extensive experience of working in the USB Video device market for over 10 years, specializing in UVC USB cameras. We provide Saber AP Auto Tracking camera, Angekis NDI Cameras, video teleconference equipment, ptz full hd camera, ptz camera 20x zoom, ptz camera 20x, 20x ptz camera, 20x camera and so on. Want to know about ip ptz camera specifications and all in one video camera? Please contact us.
