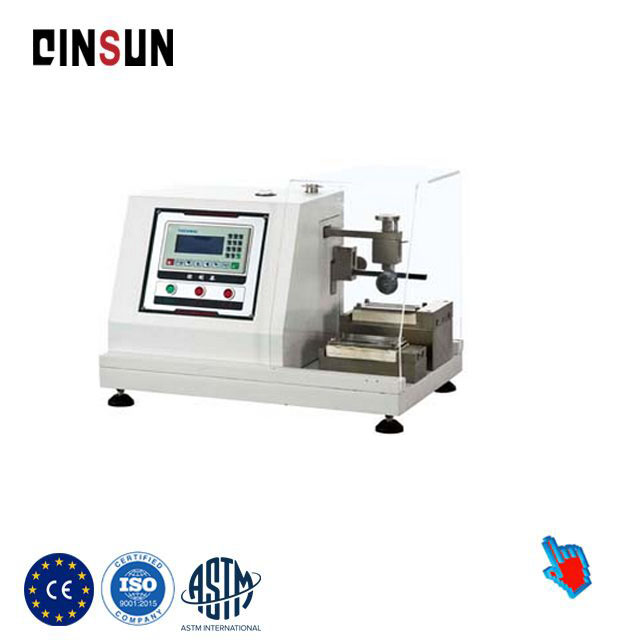

Safety Glove Cutting Resistance Testing Machine
The instrument is suitable for testing protective glove protection zone strength test, using the blade under the specified load to do reciprocating motion for the principle, in line with ISO20344 6.14 and EN388.6.2 standards.
Test criteria:
EN ISO 20344, GB / T 20991, EN 388, EN 340
Detection principle:
A rotating circular blade is cut and placed on a dedicated sample device. The blade is reciprocated under a specified load, automatically counted, the test is automatically stopped, and the difference between the test before and after the test is made. Test Results.
Technical Parameters:
1. Number of test samples: 1 group;
2. Horizontal movement displacement: 50mm;
3. Blade rotation direction: the opposite direction of motion;
4. Blade cutting speed: maximum 10cm / s;
5. Load on blade: 5 ± 0.05 N;
6. Round blade size: diameter 45 ± 0.5mm, thickness 3 ± 0.3mm;
7. Total cutting angle: 30 ° -35 °;
8. Blade material: hard tungsten steel, hardness of 740-800HV;
9. Dimension: 550 × 400 × 250mm (L × W × H);
10. Counter: LCD liquid crystal display, 0 ~ 99,999,999;
11. Weight: 57.5kg;
12. Power: 220V 50Hz;
