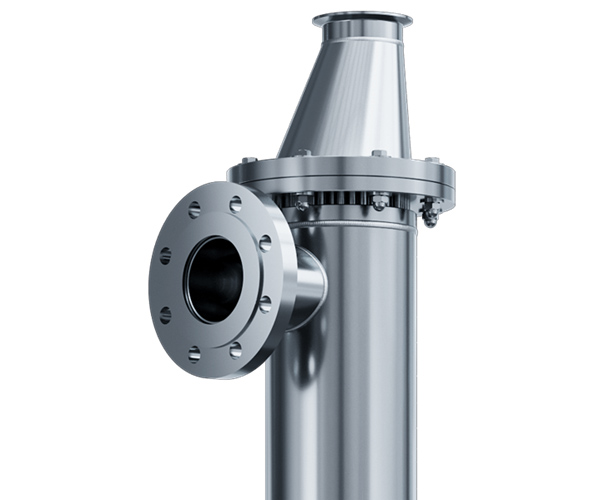

SANITARY HEAT EXCHANGER
The sanitary wfi heat exchanger (sterile double tube plate heat exchanger) is designed to work under the working conditions with the highest sanitary requirements, and the double tube plate structure design is adopted. The port of the heat exchanger adopts quick installation or flange structure, which effectively avoids the retention of liquid medicine at the connection between the heat exchanger and the pipeline, realizes the real full emptying design, and also makes the equipment disassembly convenient. The unique design of double tube sheet makes it easy to completely empty and keep the heat exchange tube clean, which can ensure the complete separation of the shell side and tube side media, without internal welding points, and effectively eliminate the cross contamination between products and heat exchange media. It is not polluted and can detect leakage, thus avoiding the risk of cross contamination of conventional heat exchanger.
Technical Data of Sanitary Heat Exchanger
Heat Exchange Area |
0.5—15m2 |
Design Temperature |
max 165℃ |
Design Press |
max 1.6MPa |
Surface Treatment |
Ra=0.25—0.5。 |
Soldering standard |
EN-288-3,EN287-1 |
Mounting Type |
Horizontal or vertical installation. |
For more information about pharmaceutical purified water systems, please feel free to contact us!
