Sanitary Manhole Cover/Stainless Steel Manhole Cover/ Manway Cover

Quantité : 100   Prix : US$5-10

Manhole Cover

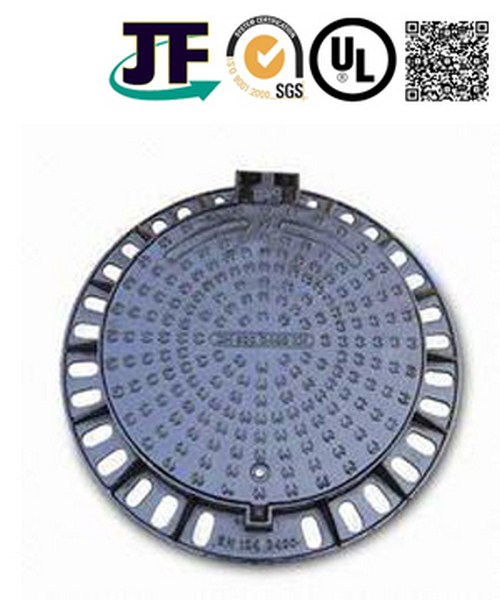

Cast iron manhole cover

We can produce all kind of manhole cover with customers' drawing or sampe.
OEM ans ODM are welcomed.


Characteristics of our manhole cover:

1. Material: cast gray iron, ductile iron.

2. Shape: round, square, rectangle and triangle.

3. Diameter: from 200mm to 1200mm.

4. Weight: from 7kg to 154kg or according to customers' requirment

5. Packing: in wooden pallet with plastic layer

6. Annual output: 10,000 tons

7. Coating: black bitumen or Coating as per customers' requirement

8. Use : municipal engineering, Traffic, pavement ,electronics,telecom, cable, petroleum, chemical industry, or drainage system and industrial facilities of valve well.

D400 Clear Opening 400mm Casting manhole cover/cast iron manhole cover price
Clear Opening: 390*390mm
Frame size: 490*490mm
Frame depth: 75
Testing Loading: D400
Material: Ductile iron GGG500-7&400-12
Standard : EN124
1. Advantage of our Manhole Covers
1) Can supply all kinds of load class Product such as A15/B125/C250/D400/E600/F900
2) Against theft and safety, double sealed, watertight type
3)material No. GGC50(DIN1693-73),QT500-7(GB/T1348-1988), 80-55-06(ASTM A536), FCD500(JISG 5502-2001),500/7(BS2789: 1985).
4)Free charge of design.
5) 3 day pay for ready if the request in storck.

2. Detailed information of manhole cover
1) Various manhole cover made by GX Foundry strictly conform to standard and free from sand holes, blowholes,distortion or any other defects
2)Processes:
a) Automatic machine lines
b) Moulding boards
c) Green sand with hand moulding
3)Guarantee: GX Foundry will replace any heavy duty castings that have been properly installed and broken in normal use,free of charge after receipt of the broken castings.

1. Q: Why choose Shengao product?

A: We shengao have our own plant-- Weifang Shengao machinery Co.,Ltd, therefore, we can surely pr omise the quality of every product and provide you comparable price.

2. Q: Do you provide OEM Service?

A: Yes, we provide OEM Service.

3. Q: Do you provide customized forging products?

A: Yes. Customers give us drawings and specifications, and we will manufact accordingly.

4. Q: What is your payment term?

A: We provide kinds of payment terms such as L/C, T/T, Paypal, Escrow, etc.

If there's anything I can help, please feel free to contact with me.

name

Custom Oval Resin Manhole Covers/Manhole Cover (DIAMTER 600MM)

material

ductile iron GGG50/7, gray iron

standard

EN124/1433/1563

class

A15,B125,C250,D400,E600,F900

shape

Round

Size

600*600,840*840, 850*850 or as per customers' drawing

paint

bituminous black

advantage

Non-slip and safe, easy installation, easy to clean, excellent anti-pressure and attractive appearan ce

molding

DISA Line

process

Drawing-mould making-raw casting-sand blasting-rough machining-surface treatment-product inspection< /p>

application

footway, pedestrians, car parks, aircraft pavements

certificate

BSI, ISO9001: 2000

Strict quality control

Tensile strength: 500Mpa Yield stress : 320Mpa
Elongation rate : 7%
Hardness: HBS170-230

Main products

Manhole covers and grates, Furnace, bases, Machinery parts, cookers, Valve bodies, pipe fittings, Au to parts

other information

we can cast and process any type of iron casting products according to customers' drawing or samples

Size( customized available for other dimensions)

Order No.

Inner dia

grating

Outer dia

Height

Weight(kg)

Pressure(KN)

F0536-1

252 x 252

326 x 326

360 x 360

36

13.5

C250

F0536-2

350 x 350

400 x 400

470 x 470

40

20

C250

F0536-3

450 x 450

500 x 500

580 x 580

50

32

C250

F0536-4

550 x 550

600 x 600

680 x 680

50

39

C250

F0536-5

350 x 350

400 x 400

500 x 500

100

36.2

D400

F0536-6

450 x 450

500 x 500

600 x 600

100

49

D400

F0536-7

560 x 560

600 x 600

700 x 700

100

62

D400

Material composition:

Tensile strength

560Mpa

Yield strees

340Mpa

Elongation rate

7.5%

Hardness

210HBS

Material

GJS500-7(GGG50)

Standard

EN 124
