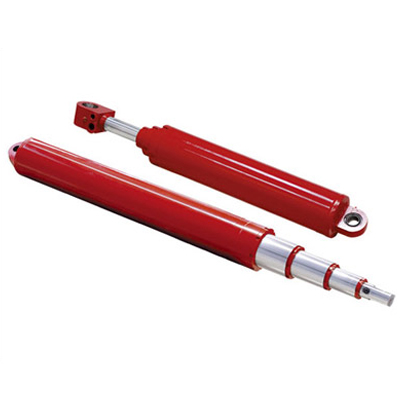

Sanitation Vehicle Cylinders
Brief introduction:
Sanitation vehicle cylinders are widely used in various types of compressed sanitation garbage truck hydraulic systems. The series of cylinders include push plate cylinders, sliding cylinders, scraper cylinders, lift cylinders, and the like. The push plate cylinder is a double-acting multi-stage telescopic sleeve hydraulic cylinder.
Sanitation Vehicle Cylinders
Product Description
Product Advantage:
Sanitation vehicle cylinders are widely used in various types of compressed sanitation garbage truck hydraulic systems. The series of cylinders include push plate cylinders, sliding cylinders, scraper cylinders, lift cylinders, and the like. The push plate cylinder is a double-acting multi-stage telescopic sleeve hydraulic cylinder, and the inlet and outlet ports are all arranged at the rod end. The series of cylinders are reasonable in structure, reliable in operation, convenient in assembly and disassembly, and easy to maintain. Special designs can be made according to the user's special needs and technical parameters.
Technical Specification:
|
Model |
Name |
Pressure MPa |
Stroke mm |
Bore/Rod mm |
|
HSG63/35-110X470 |
Flipping cylinder |
16 |
110 |
63/35 |
|
HSG100/45X800 |
Lifting cylinder |
800 |
100/45 |
|
|
HSG90/45X485 |
Lifting cylinder |
485 |
90/45 |
|
|
HSG40/20-400X700 |
Lock pin cylinder |
18 |
400 |
40/20 |
|
HSG80/40X430 |
Scraper cylinder |
430 |
80/40 |
|
|
3HSTG150-1935AX1000 |
Multi-stage double-acting pusher cylinder |
16 |
1935 |
150/120/90(135/105/75) |
|
4HSTG180X5500 |
Multi-stage double-acting pusher cylinder |
5500 |
180/150/120/90(165/135/105/75) |
We also provide garbage truck hydraulic cylinders,RFQ today!
