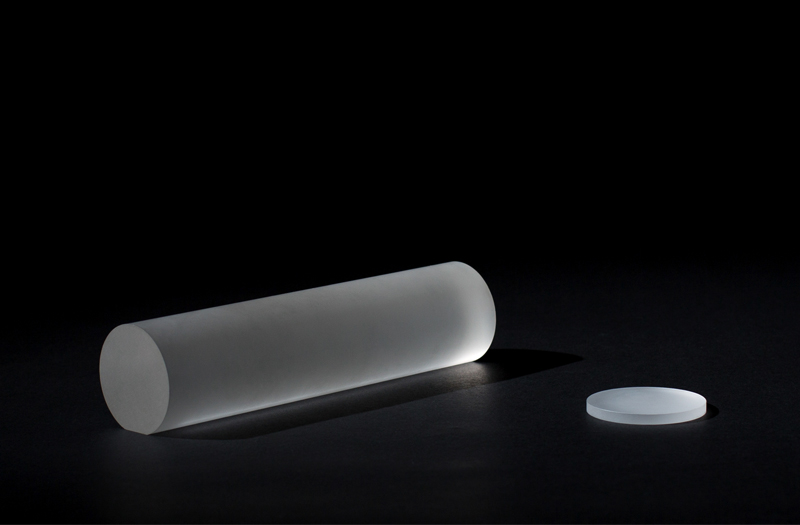

SAPPHIRE INGOTS/RODS
Sapphire ingots are typically used as raw materials for further processing. These sapphire rods and sapphire ingots are uniformly shaped, usually as cylinders. The most sapphire crystal grows in A-axis, and the most widely used sapphire substrate in the LED market is its C-plane (0001). Therefore, it is necessary to drill the c-plane sapphire ingot from the side of the crystal.
As one of professional sapphire ingot manufacturers , CRYSCORE provides sapphire rods and ingots with ground surfaces for further processing and polishing. They are cored from high-grade Kyropoulos grown boules. We supply dia. 2-inch to 8-inch sapphire rod and ingot with any orientation and custom specifications. Flats are available upon request.
Specifications of Sapphire Ingot
|
Item |
Sapphire Ingots |
|
Crystal Materials |
99,999%, High Purity, Monocrystalline Al2O3 |
|
Orientation |
C-plane(0001), A-plane(11-20), M-plane(10-10), |
|
R-plane(1-102), N-plane(11-23), V-plane(22-43) |
|
|
Diameter |
2-inch, 4-inch, 6-inch, 8-inch, etc. |
|
Flat |
Upon request |
|
Surface Finish |
Fine Ground |
|
Packaging |
Single piece packaging |
CRYSCORE OPTOELECTRONIC LIMITED has been a professional manufacturer, we provide sapphire optics, pss sapphire, Sapphire Windows and etc. Want to know sapphire ingot price or more? Please contact us.
