SBI2.0 Compliant FAP30 Fingerprint Scanner
Quantité : 10000+ Prix : USD20-USD600/unit
OVERVIEW:

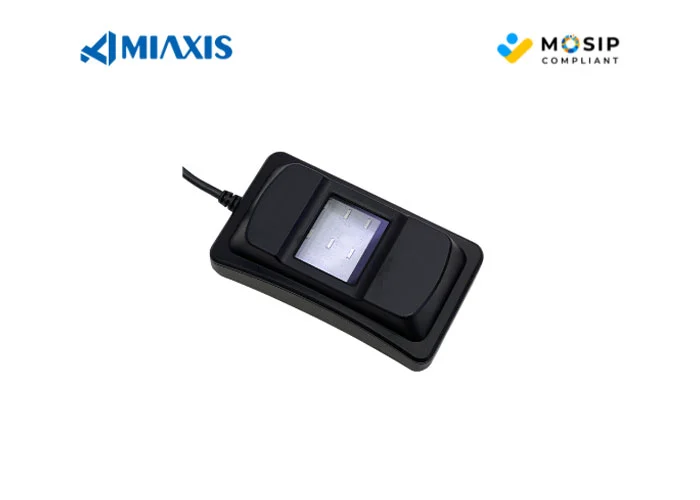

MIAXIS® Model SM-93 is an FBI-PIV&Mobile ID FAP30 certified and MOSIP SBI2.0 Compliant Secure Fingerprint Authentication Scanner. It's a compact & portable fingerprint collection device for easy integration with new or existing applications. Powered by USB 2.0 and supports Windows, Linux and Android operating systems. Ideal for secure biometric authentication and national e-ID programs.
FEATURES:
MOSIP Compliant
MOSIP SBI2.0 compliant fingerprint scanner
Max. encryption capture time within 4 seconds
FBI Certificates:
FBI PIV and FBI Mobile ID FAP30 certificates
Biometric standard: ISO 19794-4, ANSI 381, WSQ, JPEG, RAW, BMP, MINEX III compliance
Live Fingerprint Detection
Machine-learning-based live finger detection technology to differentiate fake fingers
Auto-reject fake materials including silicon, paper, rubber and more
Easy Integration
SDKs available for Android, MS Windows compatible
UART&USB multiple interfaces
Advanced Algorithm
Template options: MIAXIS, ISO 19794-2 & ANSI 378
Miaxis proprietary Justouch® fingerprint extractor & matcher passed NIST MINEX III compliance
Value-added customised APIs for software integration
Dustproof and Waterproof
IP54 dustproof and waterproof
SPECIFICATION:
|
Sensor Type |
Optical sensor |
|
Image Resolution |
500 dpi |
|
Image Size |
400×500 pixel |
|
FAP(fingerprint acquisition profile) |
FAP30 |
|
Image Formats |
WSQ, JPEG, RAW, BMP, ISO 19794-4, ANSI 381 |
|
Image Gray Scale |
8 bit, 256 levels |
|
Live Finger Detection |
Yes |
|
Sensing Area |
21.4×26.4mm |
|
Ingress Protection |
IP65(sensor surface) |
|
ESD Immunity |
±8kV contact discharge; ±15kV air discharge |
|
Supply Current |
≤200mA(USB powered); ≤50mA(USB powered at sleep mode) |
|
Supply Voltage |
DC 5V±5% |
|
Operating Temperature |
－10℃～＋50℃ |
|
Operating Humidity |
20%RH～90%RH |
|
Security |
FTM based, MOSIP L1 Device, SBI 2.0 |
|
Compliance |
FBI-PIV&Mobile FAP30, MOSIP L1, CE&FCC certified, MINEX III |
|
Dimensions |
82×47.9×24mm（L×W×H） |
|
Support OS |
Linux Kernel 4.15 or Higher Windows 7 or Higher Android 4.1 or Higher |
There are many biometric machine suppliers in China, but we are one of the best choices for you.
