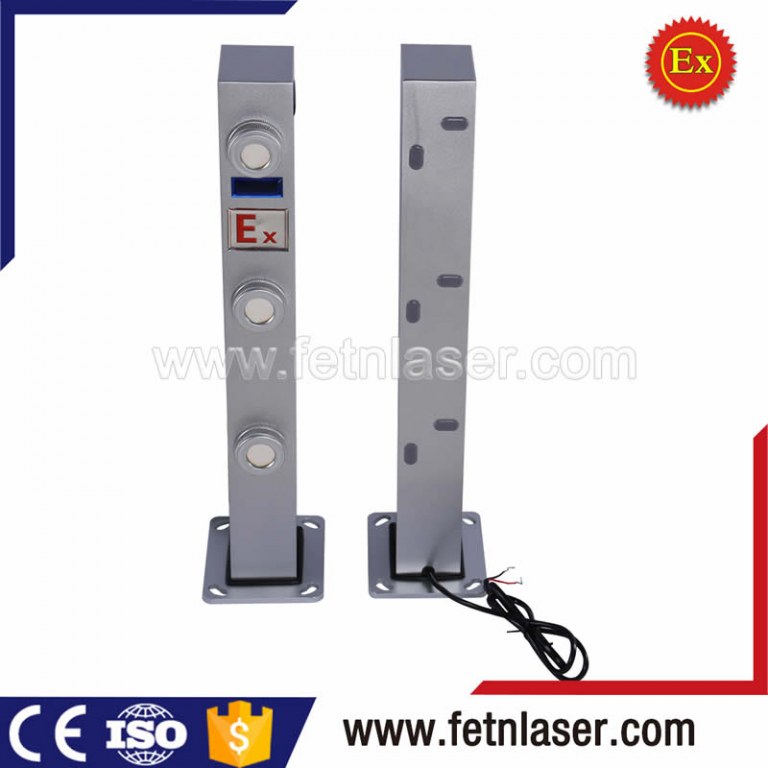

Security alarm photoelectric beams active laser motion detector

Item

Technical indexes

Model

XD-B50/100/200/300/500Cib

Laser wave length

650nm, 808nm, 980nm

Alert distance

0- 500m

Alert level

three-layer alert, layer spacing: 24cm

Alarm mode

Beam blocking alarm

Working voltage

DC12V±10%

Working current:

190mA when transmitting; 80mA when receiving (alarm)

Alarm output mode

Solid relay normally closed contact; contact capacity: DC24V/1A

Angles at the transmitting and receiving ends

Divergence angle: horizontal <6′ vertical <30′ Receiving angle: <±8° </p>

Optical axis adjustment angle

Horizontal ±15° Vertical ±15° (range adjustable.)

Product dimension

60mm (L) × 80mm (W) × 500mm (H)

Chassis dimension

110mm (L) × 130mm (W) × 6mm (H)

Material

Aluminum alloy

Dimension of installation hole

4 diameter 10 mm holes in even distribution

Alarm time

2s±1s (1-30s optional)

Response time

5ms-500ms (adjustable)

Working environment temperature

-40℃-70℃

Protection level

IP67

Type of laser light source

Type I safety laser light source, in Class I

MTBF

> 120,000h

Explosive proof grade

ExibmbIIBT4 Gb
