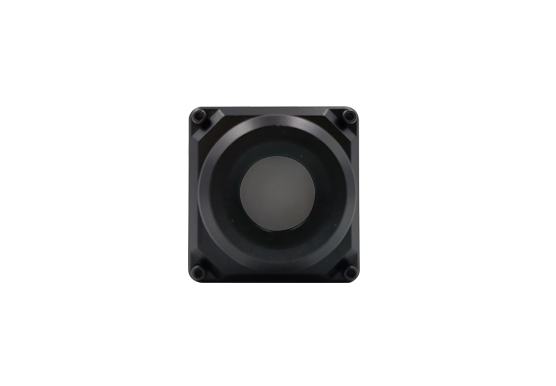

Selina30 Driver's Vision Enhancer

Item

Selina30

Detector Data

Type

Uncooled FPA

IR resolution

384 × 288

Pixel pitch

17μm

Spectral range

8 ～ 14μm

NETD/Sensitivity

≤60mK

Lens Data

FOV

36.1 ° × 27.1 °

Focal distance

10mm

Focus

Athermal

Recognition distance(vehicle)

230m

Recognition distance(human)

78m

F

F 1.0

Image Performance

Image enhancement

IVE image enhancement algorithm

Noise reduction

Digital filtering

Frequency

50Hz

Startup time

5s

Contrast/brightness

Auto

Interfaces

Power interface

Yes

Video output

PAL

Power System

Working voltage

DC: 7V～32V

Power consumption

<1W(stable state)</span>

<6.5W start window heating(<4℃)</span>

Over&Under voltage protection

Yes

Surge suppression

DC: 80V, 20ms

Environment Parameters

Operating temperature range

-40 ℃ ～ + 60 ℃

Storage temperature range

-45 ℃ ～ + 65 ℃

Humidity

40 ℃ / 95% RH (Non-condenser)

Salt spray

GJB150.11A-2009

Vibration

GJB150.18A-2009

Shock

GJB150.16A-2009

Encapsulation

IP67

Displayer(Optional)

Size

7”TFT LCD

Resolution ratio

800 (H) × 480 （V）

Operating

-20 ℃ ~ + 70 ℃

Encapsulation

IP68

Physical Data

Size

62mm×64mm×83.5mm

Weight

<380g</span>

Please note that product specifications are subject to change without notice. To acquire more accurate information, please feel free to contact us.
