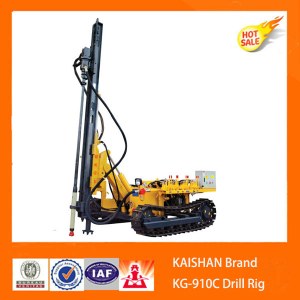

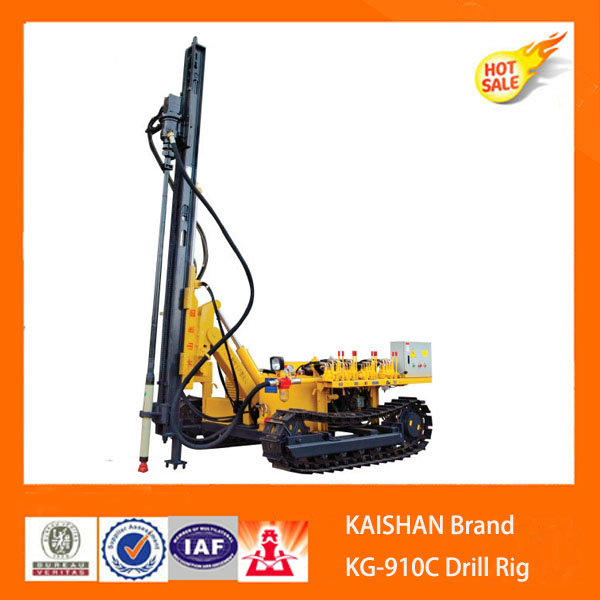

Sell KG 910C/E DTH crawler drill
Quantité : 600/sets/m Prix : USD11984-12000
Products description
KG910C/E medium pressure crawler drilling rig is the update version of KY125 Rock hole driller, The pneumatic system.
hydraulic system, drill arm components, walking parts are all optimized and upgraded, Thus the machine has stronger gradeability-the-sleepest slope could be in 30 degree. Besides.the rotation speed could be from 0r/min to 107r/min.
KG910 C/E |
|
Rock Rigidity |
f=6~20 |
Drilling hole diameter |
80~105mm |
Drilling Depth |
25m |
Traveling speed |
0~2.0km/h |
Rotation speed |
0~120r/min |
Rotation torque |
983N.m |
Max.feed force |
17000N |
Push way |
Cylinder. chain |
Feed stroke |
3000mm |
Climb capacity |
30o |
Ground clearance |
254mm |
Weight |
3300kg |
Dimension |
4100 x 2030 x 2100mm |
Guide Tilt |
23.5o up . 118.5 o down |
Guide Swing |
11.5o right 36.5o left |
Compensation stroke |
900mm |
Engine model |
ZS1125GM |
Power |
22KW |
Working pressure |
7~ 14Bar |
Air consumption |
9~13m3/min |
Component |
Standard |
Hammer |
QCW930 |
Rod |
Φ64 x 2000mm |
Bits |
Φ90 |
Air hose |
Φ38 x 2 x 20 |
Shaanxi Kaishan Mechanical & Electrical Equipment Co., Ltd. is located in a beautiful ancient City - Xi'an. Since founded more than 10 years ago, our company has accumulated much experience in the business of air compressors and drilling rig machines. we are the sole agency in northwest district of China for Kaishan group.
Kaishan group is a state-level large scale enterprise in China, which has been listed among the five industries of Zhejiang Provincial government, the 958 Technology Catching-up Plan and the key enterprises by Zhejiang provincial government. The group is the civilized enterprise of provincial level and contract abiding and trustworthy enterprise of state level.
By far, Kaishan group is the largest rock drill manufacturer in the world, and the largest air compressor manufacturer in China. Exports are shipped to over 20 different nations and regions such as United States, Germany, Japan, South Korea, Russia, African and Latin American countries.
Please contact me by dialling me or sending e-mail to me if you are intersested in our products, and we will provide you products with high quality, competitive price and excellent after-sale services.
