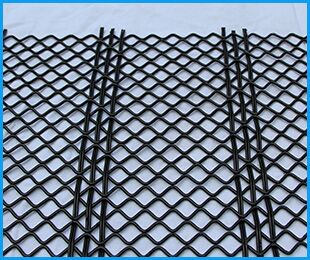

Selling self-cleaning mesh for mineral ore

crimped wire mesh

material: 65Mn steel wire , 45# steel wire , iron wire , stainless steel wire

wire diameter: 1.0-12.7 mm

mesh hole: 2.0-160mm

edge types: flat screen, with hemmed and over hooked (suited for the screen whose diameter is thicker than 7mm)

The Hook width normal is 3-4cm.Special is 5cm.

The Hook inside width is 2.8-3.8cm,

The Hook Outside width is 4cm.

---The Hook Angle normal is from 45Degree to 60Degree Or 180Degree.

--The Hook Angle is 45Degree mix with Hook width is 3cm

---End Edge length is more than one wire diameter length,Less than Half of hole size

weaving types:

double crimp screen , single intermediate crimp screen , double intermediate crimp screen. flat-top crimp screen ,lock crimp screen ,p-w-screen.

wire diameter tolerance: +-3%, mesh hole tolerance: +-3%

Screen Production Process:

Drawing wire--Crimped wire--Cutting wire--woven screen--Cut screen--IN Roll卷）/In Sheet

Drawing wire Production Process:

Acid Pickling--Phosphating --Descaling--Drawing

Characteristics: perfect flatness, superior mesh evenness/ tightness, Wear resistance, high tensile strength,tightly structure, not easy to fracture

Wire Diameter In Roll Or In Sheet:

Wire diameter ≥3mm advice Better make into In Sheet.

wire Diameter≤3mm can make into In Roll Or In Sheet.

packing details: inside plastice film, outside wooden pallet,or as the customers requirements.

payment : 100%TT, 30% in advance, 70% seeing the bill of lading .
