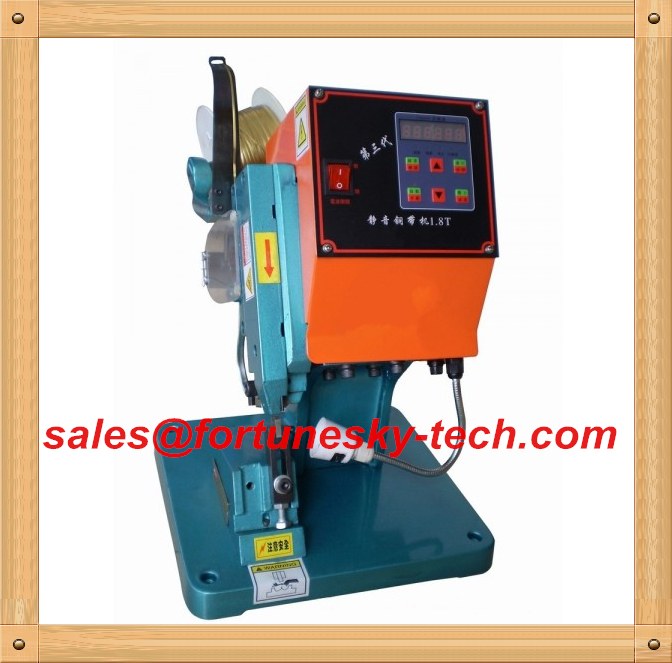

Semi-Automatic Brass Strip Splice Machine

LL-1.8T New Style Semi-Automatic Brass Strip Splice Machine

• This semi-automatic brass strip splice machine is specially designed for wire riveting processing, pressing riveting and wire connection. It has replaced the traditional soldering methods to avoid faults of no cold welding, air welding and air pollution. It is widely admitted to be the most simple and effective way.
• This splicing machine uses special continuous copper strip terminal materials to shape moulding after being cut off. Pressing quickly at one time without waste and saving cost.
• The brass strip terminal is processed by residue lines. Resistance to tension is particularly strong after riveting with stable quality.
• Straight and curved mold bases can be equipped to connect with various products.
• User-friendly design, easy to operate.

Scope of Application:

• Neon and resistor connection, LED and wire connections.
• Resistor and wire connection.
• Slide switch and wire connection.
• Connection of high temperature heating elements.
• Connection of thermosensitive components (such as magnetic spring, constant temperature fuse).
• Transformer tap and wire connection.

Model No.: LL-1.8T Semi-Automatic Brass Strip Splice Machine

Power supply: AC110V/220V 50Hz

Weight: 55 Kg

Dimension (mm): 370* 400*500

Power: 1/4HP

Stroke: 2000KG

Cooper Belt Size: 2mm/4mm/6mm
