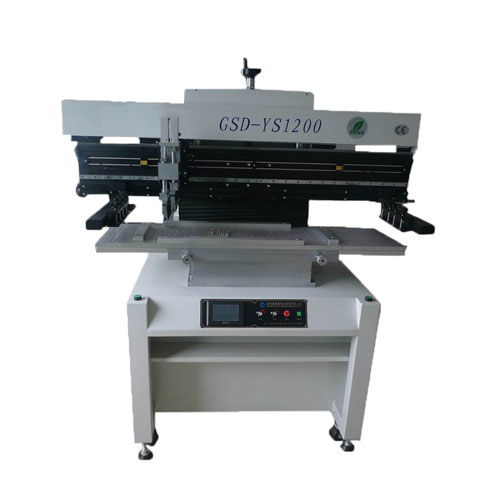

Semi-automatic Solder Printer YS1200
Please move down to understand the parameters and information.
Specification of Semi-automatic Solder Printer YS1200
|
Model |
YS1200 |
|
PCB size |
Max: 1200*240mm |
|
Printing area |
1300*320mm |
|
PCB fixed system |
Pin positioning |
|
Frame size |
L(1550-1650)*W(370-470) |
|
Adjusting for table |
front/rear±10mm，left/right±10mm |
|
Printing Accuracy |
±0.2mm |
|
Repeating Accuracy |
±0.2mm |
|
PCB thickness |
0.2-2.0mm |
|
Air source |
4-6kg/c㎡ |
|
Power supply |
AC220V 50HZ |
|
Dimension |
L1600*W700*H1700mm |
|
Packing size |
1900*900*1850mm |
|
Net weight |
300kg |
|
Gross weight |
350KG |
Features of Semi-automatic Solder Printer YS1200
The stopping time of the scraper at top left or bottom left, and top right of bottom right, as well as the overall stopping time of the steel gird at top or bottom can be independently set in the touch screen menu.
The PCB can be localized and fastened by base hole, base side, both base hole and base side, and template localization.
Time can be displayed on the touch screen and the count of the printing time can be recorded.
The scraper speed at left and right is adjustable and can be stopped in an emergency.
As one of the professional smt equipment suppliers in China, TronStol provides other SMT line machines, such as reflow ovens, stencil printers, etc. to complete your SMT Line.
