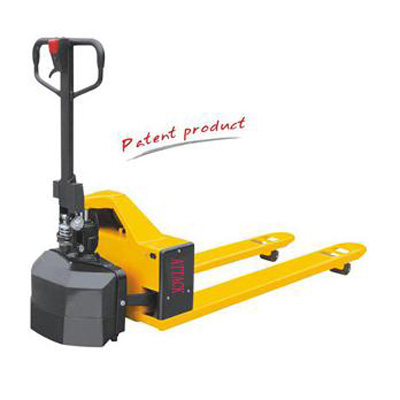

Semi-electric Pallet Truck CBD10A-II
Description
: We are professional semi electric pallet truck CBD10A-II supplier and factory in China.We can produce the product according to your requirements.
Product Features
Two-speed driving system.
Emergency brake switch.
Manual lifting and motor driving.
AC motor,no carbon brush,maintenance free,low noise.
Sealed batteries free of maintenance,safe operation and no pollution.
Built-in charger.
Conform to EN 1757-2.
Parameters
|
Model |
|
CBD10A-Ⅱ |
|
Load Capacity |
Q(kg) |
1000 |
|
Load centre distance |
c(mm) |
500 |
|
Lowered fork height |
h13(mm) |
85/75 |
|
Wheelbase |
y(mm) |
1280/1350 |
|
Tyre size,front |
mm |
Φ175 |
|
Tyre size,rear |
mm |
Φ80/Φ74 |
|
Max. lift height |
h3(mm) |
200/190 |
|
Height of tiller in drive position min./max. |
h14(mm) |
1244 |
|
Overall length |
l1(mm) |
1685/1755 |
|
Length to face of forks |
l2(mm) |
535 |
|
Fork dimensions |
s/e/l(mm) |
45/160/1150(1220) |
|
Width overall forks |
b5(mm) |
520/550/680 |
|
Ground clearance,centre of wheelbase |
m2(mm) |
30/20 |
|
Aisle width for pallets 1000×1200 crossways |
Ast(mm) |
1885/1955 |
|
Aisle width for pallets 800×1200 lengthways |
Ast(mm) |
1935/1955 |
|
Turning radius |
Wa(mm) |
1490/1560 |
|
Travel speed,laden/unladen |
Km/h |
2.6/3.8 |
|
Max.gradeability,laden/unladen |
% |
5/15 |
|
Drive motor rating S2 60 min |
kW |
0.5 |
|
Battery voltage,nominal capacity K10 |
V/Ah |
24/38 |
|
Battery weight |
kg |
26 |
|
Service weight (with battery) |
kg |
150 |
ATTACK GLOBAL (HK) Co.,Ltd. is a professional manufacturer specializing in material handling machinery for more than 10 years. We provide ARTICULATED FORKLIFT, GASOLINE FORKLIFT, semi electric pallet jack, electric forklift China and so on. Want to know more? Please contact us.
