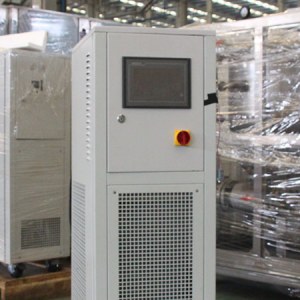

Semiconductor Chiller
Temperature control range -5 ° C to 85 ° C, the temperature of the thermal fluid can be adjusted, the temperature control accuracy is high, the accuracy is ± 0.3 ° C.
The device uses international brand accessories and has stable performance and can work continuously for 24 hours. The semiconductor chiller can be applied to cooling of a heat generating portion of a semiconductor manufacturing apparatus, cooling of a heat generating portion of the laser device, analysis of a heat generating portion of the detecting device, and the like.
Some models are specially upgraded, not only for cooling, but also for heating. The temperature control range can reach -5°C to 85°C, which improves the performance of precision cooling water circulation equipment and expands the application range of the equipment.
|
Model |
LL-0250SS |
LL-0500SS |
LL-1000SS |
|
|
Temperature Range |
-5°C～+85°C |
-5°C～+85°C |
-5°C～+85°C |
|
|
Temperature Control Prcision |
±0.3°C |
±0.3°C |
±0.3°C |
|
|
Refrigerating Output |
At 20℃ |
2.5kw |
5kw |
10kw |
|
At 10℃ |
1.8kw |
3.6kw |
7.2kw |
|
|
Liquid Storage Volume |
25L |
35L |
50L |
|
|
Operation Panel |
Display set temperature and measured temperature,7-inch touch screen operation |
|||
|
Data Logging |
Set temperature, measure temperature, can be exported in EXCEL file format |
|||
|
Flow Output |
2 ～ 20L / min |
2 ～ 20L / min |
3 ～ 30L / min |
|
|
Flow Regulation Mode |
Mechanical flow regulating device |
|||
|
Flow and pressure |
Adopt Johnson Auto-control Pressure Sensor and Turbine Flow Sensor |
|||
|
Circulating Pump |
Southern/Grandford/Welle Brand Pressure 2bar |
|||
|
Compression Engine |
Hitachi/Mitsubishi/Panasonic/Emerson Valley Wheel |
|||
|
Refrigeration Unit |
Danfoss brands such as expansion valves, drying filters, etc. |
|||
|
Electric Parts |
Circuit breaker, contactor selection Schneider brand |
|||
|
Cryogen |
R134A |
|||
|
Safe Guarding |
It has self-diagnosis function, freezer overload protection, high voltage pressure switch, overload relay, thermal protection device and many other safety protection functions. |
|||
|
Interface Dimension |
G3 / 4 |
|||
|
Source |
1.5kw 220V 50HZ |
2.5kw 220V 50HZ |
4kw 380V 50HZ |
|
|
Size |
400*600*1200 |
450*850*1300 |
550*1000*1750 |
|
