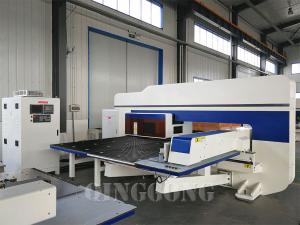

SERVO CNC TURRET PUNCHING MACHINE
Quantité : 100 units Prix : RMB: 50000-200000
The main transmission of servo CNC turret punching machine is directly from servo drive turret punch press, which retains the advantage of a simple and reliable structure as mechanical transmission, it features high efficiency, energy saving, low noise, high accuracy, and can realize many processes like die-cutting, forming, beading, lettering and so on.
Features
Servo drive
Direct driving structure
Sealed oil tank, prefect lubricating with lower temperature rising.
Turret
32 working stations
Material: 40Cr
Pair machining in large scale roller punching machine center.
Adopt Amada standard long tools.
Super high accuracy position pin ensures the aligment of punch and die
Auto-index
Worm and gear driving structure ensures the accuracy of double direction.
Singal synchronous driving belt ensures the accuracy of punch and die.
servo CNC turret punching machine 1
Bushing
Each station has high accurate bushing.
40Cr material
International standard long toolings
Driving
T axis is driving by one servo motor with chains
C axis is driving by one servo motor with a belt.
Sand blasting Room Body
The wall of the sandblasting equipment body uses a noise attenuation sandwich panel with glass wool interlayer and abrasion-resistant rubber liner. The rubber liner also has the noise attenuation function.
As the shot blasting machine manufacturer, QINGGONG MACHINERY mainly supplies four types of partial reclaim systems, including sweep-chute floor, single screw, H-shaped partial reclaim system, and U-shape partial reclaim system.
QINGGONG MACHINERY also offers a full spectrum of blast room reclaim floor designs and configurations. Our full floor reclaim system requires merely a shallow concrete foundation. The type of sandblasting room is carefully designed to lift working effiency.
Personne à contacter : Sara Sara Li, 0532 82121566
