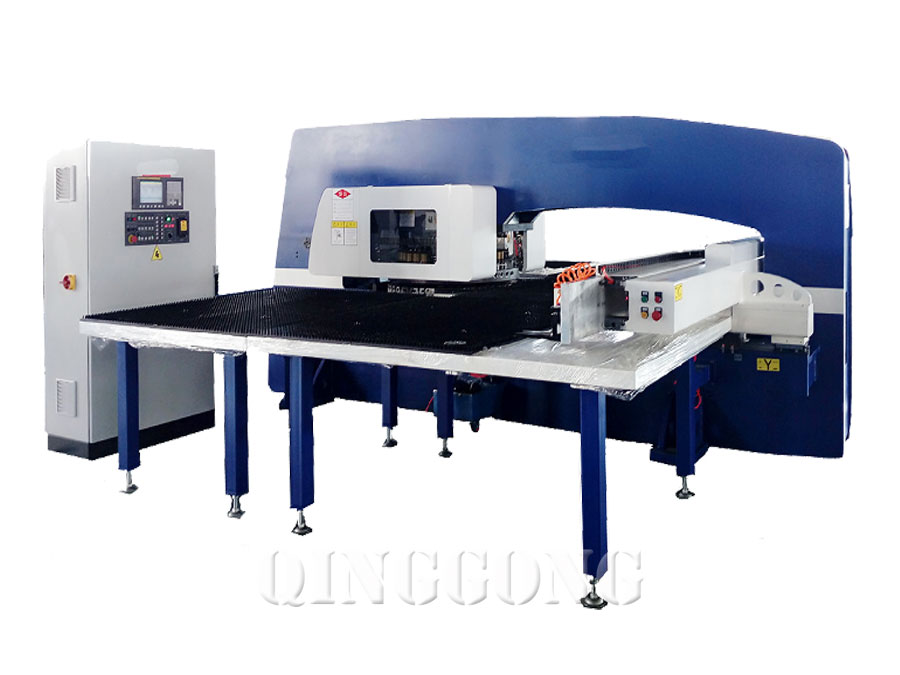

SERVO CNC TURRET PUNCHING MACHINE

The main transmission of servo CNC turret punching machine is directly from drive servo punch press, which retains the advantage of a simple and reliable structure as mechanical transmission, it features high efficiency, energy saving, low noise, high accuracy, and can realize many processes like die-cutting, forming, beading, lettering and so on.

Features

Servo drive

Direct driving structure

Sealed oil tank, prefect lubricating with lower temperature rising.

Turret

32 working stations

Material: 40Cr

Pair machining in large scale machine center.

Adopt Amada standard long tools.

Super high accuracy position pin ensures the aligment of punch and die

Auto-index

Worm and gear driving structure ensures the accuracy of double direction.

Singal synchronous driving belt ensures the accuracy of punch and die.

Bushing

Each station has high accurate bushing.

40Cr material

International standard long toolings

Driving

T axis is driving by one servo motor with chains

C axis is driving by one servo motor with a belt.

Basic Specification

Serial

Name

unit

Parameters

1

Model

/

S30-A

S30-B

2

Workstation

number

26

32

3

Punching pressure

KNT

20020

4

Punching form

/

servo drive

5

Frame structure

/

Closed bed

6

machined sheet metal

X

mm

5000Relocating with one time

Y

mm

1250 or 1500

7

thickness of machined sheet metal

mm

6

8

stamping frequency

cpm

1500

9

Pliers number

only

3

10

Clamp mechanism

/

Pneumatic

11

Repositioning cylinder

set

2

12

Rotating station

/

2

13

Control axis number

/

5XYWCA

14

Turntable diameter

mm

1040

15

Mould form

/

Thick turret and long die

16

Worktable structure

/

Brush plate and floating universal ball

17

Punching accuracy of primary positioning

mm

±0.1

18

maximum carrying weight

Kg

150

19

Gas source

Mpa

0.5

20

Total power

KW

30

21

speed of sheet movement

m/min

70

22

Rotating tower speed

r/min

30

23

Machine weight

ton

12

24

Outer size

mm

4600*5100*2000

Mold distribution

A

12.7mm

B

31.7mm

C

50.8mm

D

88.9mm

26 turret (including 2 B stations rotating)

10

12

2

2

32 turret (including 2 B stations rotating)

16

12

2

2

QINGGONG MACHINERY is a professional shot blasting machine manufacturer, we provide shot blasting machine, shot blasting machinery, mechanical cnc turret punching machine, servo drive turret punch press, servo punch press, roller punching machine, turret punching machine, roller shot blasting machine and etc. Want to know blasting media comparison or more? Please contact us.
