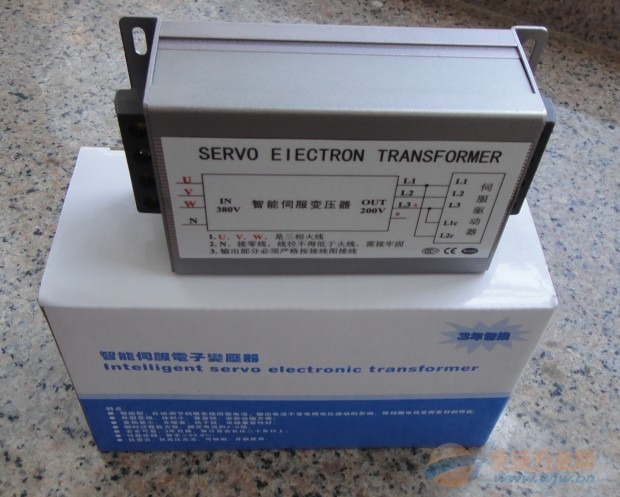

Servo electronic transformer
we are professional and focus on the power transformer and Servo transformer for more than 10 years. About the encapsulated transformer, we have different types for your selection, the power are from 1VA To 55VA. And we can also design it from your ideas.
The features and series specification are as below:
1. Intelligent, Output AND input current of the automatic regulation Servo system are not affected by the charge of current, which keep better performance of servo motor.
2. Beautiful appearance, small frame,low weight, easy to install and carry .
3. Less heat emiting, no noise,anti-jamming,advanced electromagnetic compatibility。
4. Powerful immediate current load capacity, as much of rated current as 3-5 times.
5. Safe and reliable. Life cycle up to 20 years above.
6. Excellent performance with efficiency≥99.8
7. Lightning stroke protection; extreme voltage/current protection;keep working under lacking phase; optional working in parallel connection.
We have different types as below for your reference:
|
Model |
Power (KW) |
SIZE(L*W*H ) mm |
Weight (kg) |
Remark |
|
SET-2000 |
2.0 |
142*76*46 |
0.5 |
|
|
SET-3000 |
3.0 |
142*76*46 |
0.6 |
|
|
SET-4500 |
4.5 |
142*76*46 |
0.7 |
|
|
SET-6000 |
6.0 |
213*75*35 |
0.9 |
|
|
SET-8000 |
8.0 |
213*75*35 |
1 |
|
|
SET-11000 |
11.0 |
215*105*55 |
1.3 |
|
|
SET-13000 |
13.0 |
215*105*55 |
1.4 |
|
|
SET-15000 |
15.0 |
215*105*55 |
1.6 |
|
|
SET-20000 |
20.0 |
253*115*128 |
2.5 |
|
|
SET-25000 |
25.0 |
253*115*128 |
2.7 |
|
|
SET-30000 |
30.0 |
253*115*128 |
2.9 |
|
Personne à contacter : jeff zeng, 86 755 33075780
