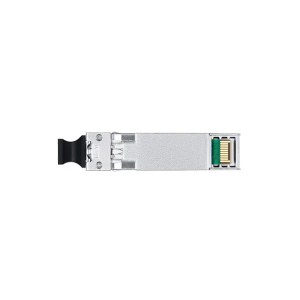

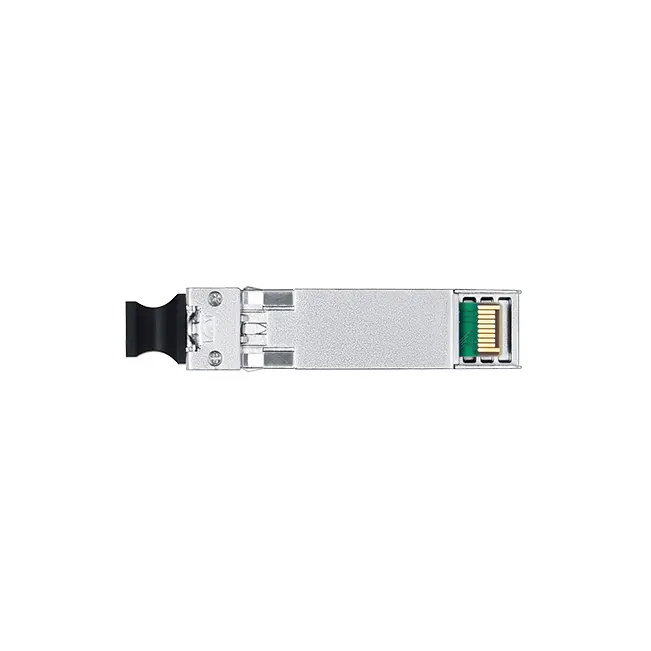

SFP+ 10G 850nm 300M LC Transceiver
Quantité : 10000+ Prix : $5-9999
The GHS1L0C85 850nm DFB 10Gigabit Transceiver is designed to transmit and receive serial optical data over single-mode optical fiber with 10Km.They are compliant with SFF-8431,SFF-8432, 10GFC Rev 4.0, FC-PI-4 Rev 7.0 and IEEE802.3ae 10GBASE-LR/LW. The transmitter converts serial CML electrical data into serial optical data compliant with the IEEE 802.3ae standard. An open collector compatible Transmit Disable (Tx_Dis) is provided. When TX_DIS is asserted High, Transmitter is turned off. The receiver converts serial optical data into serial CML electrical data. An open collector compatible Loss of Signal is provided. The RX_LOS signal indicates insufficient optical power for reliable signal reception at the receiver. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
Compatibility of SFP+ 10G 850nm 300M LC SR Transceiver
SFP-10G-SR 10GBASE-SR SFP+ 850nm 300m
SFP-10G-SR-X 10GBASE-SR SFP+ 850nm 300m
ONS-SC+_10G-SR 10GBASE-SR SFP+
DS-SFP-10GE-SR 10GBASE-SR SFP+ 850nm 300m
FET-10G 10GBASE-SR SFP+ 850nm 300m
SFP-10G-LR-S 10GBASE-LR SMF 1310nm 10km SFP+
XFP-10G-MM-SR 10GBASE-SR MMF 850nm 300m SFP
Technical Specification Of SFP+ 10G 850nm 300M 10G LC Transceiver
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Storage Temperature |
TS |
-40 |
- |
85 |
°C |
|
|
Supply Voltage |
VCC |
-0.3 |
- |
3.6 |
V |
|
|
Operating Relative Humidity |
RH |
0 |
- |
85 |
% |
no condensation |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min. |
Typical |
Max. |
Unit |
Notes |
|
Operating Case Temperature |
TC |
0 |
- |
70 |
°C |
|
|
-40 |
- |
85 |
°C |
|
||
|
Power Supply Voltage |
VCC |
3.13 |
3.3 |
3.47 |
V |
|
|
Power Supply Current |
ICC |
- |
- |
250 |
MA |
|
|
Maximum Power Dissipation |
PD |
- |
- |
0.87 |
W |
|
|
Data Rate |
DRAVE |
- |
10.312 |
- |
Gb/s |
|
|
Transmission Distance |
TD |
|
- |
300 |
m |
Over MMF |
As a transceiver supplier, we can provide kinds of optical transceiver for sale, if you are interested, please contact us.
