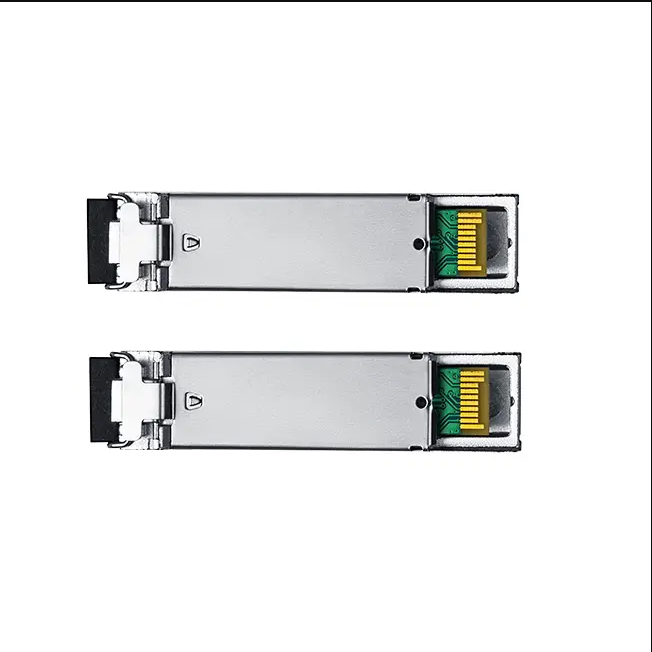

SFP 155M Tx1550/Rx1310 40Km LC Transceiver
The sfp bidirectional transceivers are high-performance, cost-effective modules supporting dual data-rate of 155Mbps and 40km transmission distance with SMF.
The sfp bidi wdm transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Technical Specification Of SFP 155M Tx1550/Rx1310 40Km LC Transceiver
Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Supply Voltage |
Vcc |
-0.5 |
4.5 |
V |
|
Storage Temperature |
Ts |
-40 |
85 |
°C |
|
Operating Humidity |
- |
5 |
85 |
% |
Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
||
|
Operating Case Temperature |
Standard |
Tc |
0 |
|
70 |
°C |
|
|
Power Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
||
|
Power Supply Current |
Icc |
|
|
300 |
mA |
||
|
Data Rate |
Gigabit Ethernet |
|
|
155 |
|
Mbps |
|
|
Fiber Channel |
|
|
155 |
|
|||
As one of transceiver manufacturers, we can offer kinds of fiber optic transceiver for sale, anything you need, please leave us a message.
