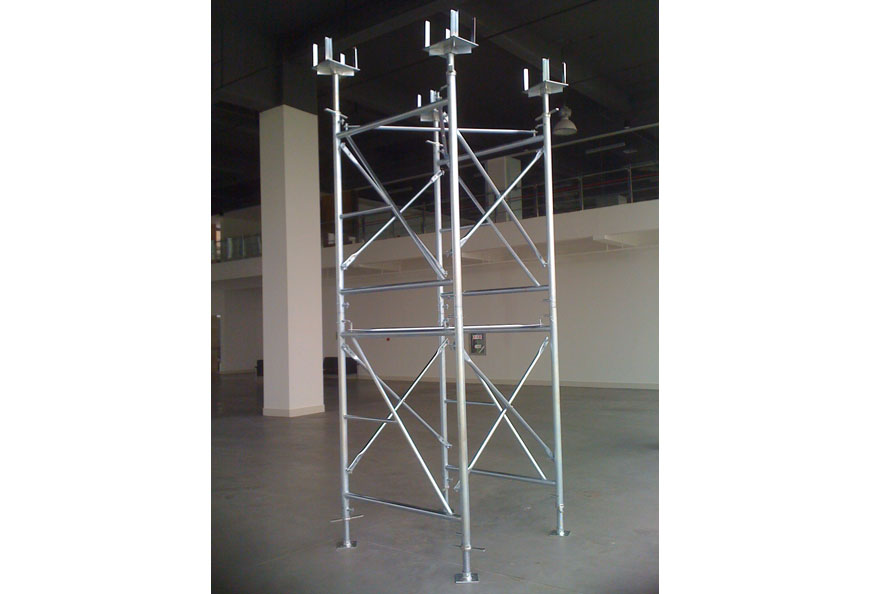

Shoring Tower TST60
TECON Shoring Tower TST60 is the fast assembly and cost-effective supporting frame system in formwork construction, especially developed for high shoring and heavy load projects, so it's widely used in bridges, subways, buildings and other civil engineering projects.
The basic sizes of supporting frame are from 1.2*1.1 m to 1.5*1.6m, all heights can be incrementally realized with those frame sizes, as well as screw jacks. Those frames are tightly connected with each other by diagonal bracing vertically and horizontally.
Features of Shoring Tower TST60
Fast and user friendly in assembly with very few elements
High load-bearing capacity up to 60 KN per leg even considered 2.5 times safety factor
Adapt various shoring requirements by only 2 frame heights and adjustable jacks
Easily transfer to Stairs Tower by adding additional accessories
Specification of Shoring Tower TST60
For loads up to 60kN per leg, Q345 for vertical tube, main frame size from 1.20*1.10m, 1.20*1.60m, 1.50*1.10m to 1.50*1.60m
Hot dip galvanized surface treatment for main frame offers more than 8 years service time
Screw jack foot and screw jack head provides heights adjustment up to 500mm extensions at each end
Reinforced by diagonal braces vertically and horizontally
Main shoring tower sizes
Basic dimensions under the slab tables: 1.50 m x 1.20 m up to 1.50 m x 3.00 m
Basic dimension of shoring tower: 1.00 m x 1.20 m
Basic dimension of stair tower: 1.50 m x 3.00 m
Work as shoring for TECON Slab table formwork by adding anti-falling lock
Efficiently and easily moved as whole units even slab tables with tower crane lift or trolley
As the specialist in formwork & scaffolding engineering area, TECON devotes itself in providing better products & services for our customers in construction industry all over the world. We provide prop shuttering, shuttering work for slab, shoring props for sale, aluminium props for sale, formwork props for sale and etc. Want to know more? Please contact us.
