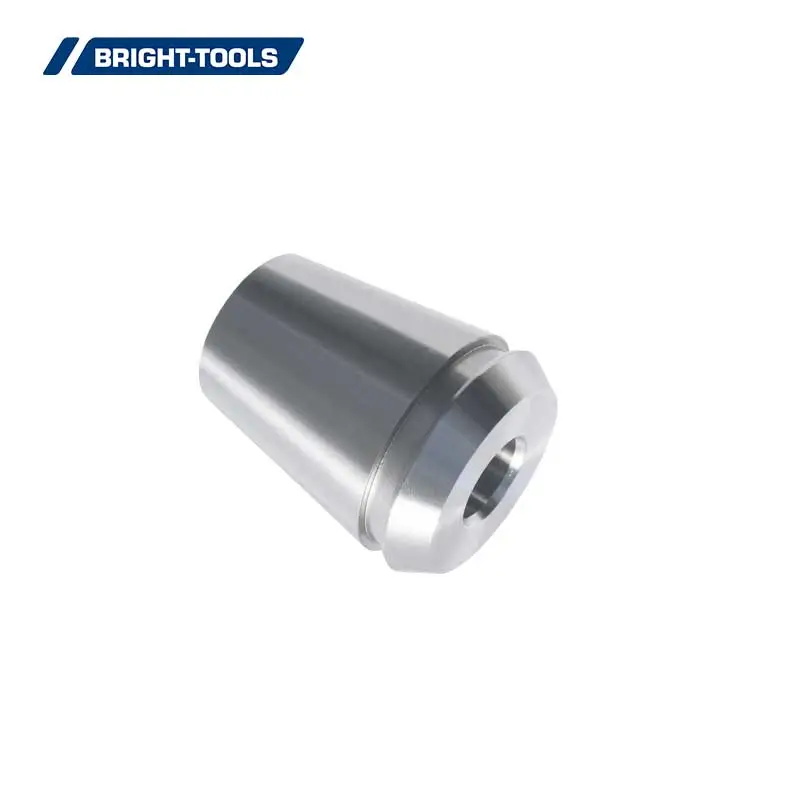

Shrink Fit ER Collet
Quantité : 50000 pcs Prix : $20-$50
Shrink fit collets adapter is used for collet chuck, driven tool holders, and direct clamping in the machine spindle. The tool is clamped precisely in the center of the clamping bore, meaning that it runs true, and when shrunk in, it forms a stable unit with the Shrink fit collet. The short and rigid clamping enables high precision at higher cutting speeds and reduces the wear on the cutting tool dramatically.
1. very high transmittable torque, Highest possible run-out, and repeatability accuracy.
2. Maximum holding forces, Increase in service life of cutting tools up to 300%.
3. low-wear monoblock properties.
SPECIFICATION OF SHRINK FIT ER COLLET
Size |
Collet Size |
d |
D1 |
A |
L |
ER16-SF03 |
ER16 |
3 |
16 |
6.7 |
27.5 |
ER16-SF04 |
ER16 |
4 |
16 |
6.7 |
27.5 |
ER16-SF05 |
ER16 |
5 |
16 |
6.7 |
27.5 |
ER16-SF06 |
ER16 |
6 |
16 |
6.7 |
27.5 |
ER16-SF08 |
ER16 |
8 |
16 |
6.7 |
27.5 |
ER16-SF10 |
ER16 |
10 |
16 |
6.7 |
27.5 |
|
|
|
|
|
|
ER20-SF03 |
ER20 |
3 |
20 |
7.52 |
31.5 |
ER20-SF04 |
ER20 |
4 |
20 |
7.52 |
31.5 |
ER20-SF05 |
ER20 |
5 |
20 |
7.52 |
31.5 |
ER20-SF06 |
ER20 |
6 |
20 |
7.52 |
31.5 |
ER20-SF08 |
ER20 |
8 |
20 |
7.52 |
31.5 |
ER20-SF10 |
ER20 |
10 |
20 |
7.52 |
31.5 |
ER20-SF12 |
ER20 |
12 |
20 |
7.52 |
31.5 |
|
|
|
|
|
|
ER25-SF03 |
ER25 |
3 |
25 |
8 |
34 |
ER25-SF04 |
ER25 |
4 |
25 |
8 |
34 |
ER25-SF05 |
ER25 |
5 |
25 |
8 |
34 |
ER25-SF06 |
ER25 |
6 |
25 |
8 |
34 |
ER25-SF08 |
ER25 |
8 |
25 |
8 |
34 |
ER25-SF10 |
ER25 |
10 |
25 |
8 |
34 |
ER25-SF12 |
ER25 |
12 |
25 |
8 |
34 |
ER25-SF14 |
ER25 |
14 |
25 |
8 |
34 |
ER25-SF16 |
ER25 |
16 |
25 |
8 |
34 |
|
|
|
|
|
|
ER32-SF03 |
ER32 |
3 |
32 |
9 |
40 |
ER32-SF04 |
ER32 |
4 |
32 |
9 |
40 |
ER32-SF05 |
ER32 |
5 |
32 |
9 |
40 |
ER32-SF06 |
ER32 |
6 |
32 |
9 |
40 |
ER32-SF08 |
ER32 |
8 |
32 |
9 |
40 |
ER32-SF10 |
ER32 |
10 |
32 |
9 |
40 |
ER32-SF12 |
ER32 |
12 |
32 |
9 |
40 |
ER32-SF14 |
ER32 |
14 |
32 |
9 |
40 |
ER32-SF16 |
ER32 |
16 |
32 |
9 |
40 |
ER32-SF18 |
ER32 |
18 |
32 |
9 |
40 |
ER32-SF20 |
ER32 |
20 |
32 |
9 |
40 |
If you want to know more kinds of bright tools, please visit our website.
Personne à contacter : Tools Bright, +86 534 8127588
