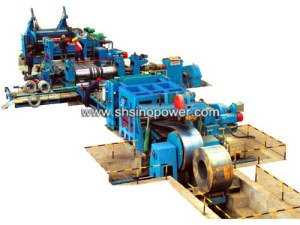

Shsinopower.com- automatic metal strip cutting machine supplier

Quantité : 1   Prix : 125000USD

SP(1-8) automatic strip cutting machine suppliers is applicable to coils of various specifications. It is used for cutting the coil into required width for the use of punch line through the procedure of uncoiling, pre-leveling, cropping, slitting and recoiling. It has advantages such as proper layout, easy operation, highly automated and high production efficiency.
This cutting machine is adaptable to process cold-rolled and hot-rolled coils, silicon steel coils, stainless coils, colored coils, aluminum coils, and all sorts of plated and coated coils, and slitting machine widely applies to many industries like automobiles, containers, household appliances, food packing, construction materials, etc. This automatic strip cutting machine consists of loading cart, uncoiler, slitter, scrap winder, cropping shear, tension controller and coil recoiler, etc. Loop bridge, pinch and deviation corrector are equipped between each machine. This automatic strip cutting machine suppliers is a integration of mechanical, electrical, hydraulic and pneumatic technology.

1. Technical Parameters of metal strip cutting machine suppliers

Model Thickness Coil Width Coil Weight Coil O.D Coil O.D Strip
Width		 Number
of Strip		 Slitting Accuracy Line Speed Coil Material
mm mm tons mm mm mm pcs mm m/min
SP(0.2-2) 0.3-2.0 400-1600 ≤20 508 ≤2000 ≥30 8~20 ±0.15 0~150 δs≤230N/2,
Cold-rolled Coil,
Hot-rolled Coil,
Stainless Coil,
Galvanized Coil,
Aluminum Coil,
Copper Coil,
etc
SP(0.3-3) 0.3-3.0 400-1600 ≤20 508,610 ≤2000 ≥30 8~20 ±0.15 0~120
SP(0.4-4) 0.4-4 500-2200 ≤25 508,610,760 ≤2200 ≥30 8~20 ±0.25 0~100
SP(1-6) 1-6 500-2200 ≤25 508,610,760 ≤2200 ≥50 5~15 ±0.25 0-80
SP(1-8) 2-8 500-2200 ≤25 508,610,760 ≤2200 ≥50 5~12 ±0.25 0-60
SP(2-10) 2-10 500-2200 ≤35 508,610,760 ≤2200 ≥50 3~10 ±0.5 0-60
SP(2-12) 2-12 500-2200 ≤35 610,760,820 ≤2200 ≥80 3~10 ±0.5 0-40
SP(3-14) 3-14 500-2200 ≤35 610,760,820 ≤2200 ≥80 2~8 ±0.1 0-40
SP(3-16) 3-16 500-2300 ≤35 610,760,820 ≤2500 ≥100 2~8 ±0.2 0-40
SP(5-20) 5-20 500-2300 ≤35 610,760,820 ≤2500 ≥100 2~8 ±0.2 0-20

2. Process Flow

Raw material platform→ carrying coil car→ hydraulic uncoiler→ feeding guide plate→ pair pinching roller, five rollers leveling→ coil head cutting→ front looping table→ side guiding table→ pinching machine→ disc slitting→ curling machine→ back looping table→ pre-feeding coils→ tension table→ rewinding→ discharging car→ hydraulic bracket→ Electric control

slitting machine, slitter machine

steel coil slitting machine line

3. Photos

Main Machine 1: Uncoileruncoiling uncoiler

sheet metal slitter machine

Main Machine 2: Leveling machineleveling leveler

Main Machine 3: cutting machineslitting slitterslitting blade

Main Machine 4: Rewinding machinerecoiler, rewinder

metal slitter,sheet metal slitter,sheet metal slitter machine,

Workshop of automatic strip cutting machine supplierswhole metal coil slitting machine line

4. Final product by metal strip cutting machine suppliers

steel coil slitting final product

Localisation : EAST TAILI RD., 200123 Shanghai,
Personne à contacter : XU SHAWN, +8615000437616
