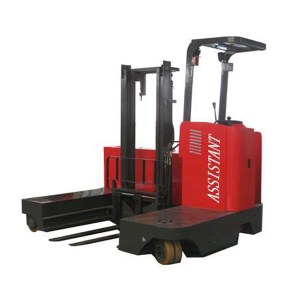

Side Loading Electric Forklift
We are professional side load forklift electric supplier and factory in China. We can produce the product according to your requirements.
TD Series side loading forklift trucks, rated load capacity: 2500kg, lift hieght: 7200mm, used for long material transportation;
1. The lift cylinder with buffering function, to ensure the goods' safety during the lift and down;
2. All electric connector with water-proof and dust-proof design;
3. Better Stability;
4. Side battery loading design, easy to change and maintanin the battery;
5. Use Vertical drive cell to Increase the working life;
6. Ergonomics design and shock absorption configuration, with more comfortable operation;
7. Buffering design for lift cylinder, to imporve the function of mast in lifting and downing,to ensure the safe for products;
8. Electromagnetism braking with Lose-electric type have reliable braking result, it's can easy to make the parking brake safely;
9. Battery with side-pulling function, easy to change and maintenance.
Side stacker forklift Parameters
Description |
TD15-30 |
TD25-30 |
Model No. |
||
Rated Capacity (KG) |
1500 |
2500 |
Operate Type |
Stand-on |
Stand-on |
Max. Lifting Height (MM) |
3000 |
3000 |
Min. Turning Radius (MM) |
2422 |
2572 |
Min. Stacking Aisle-- mm (1000*1000 Pallet) |
2622 |
2772 |
Max Travel Speed km/h -laden/unladen |
6.0/7.0 |
6.0/7.0 |
Load center MM |
500 |
500 |
Fork Dimensions -L/W/T---mm |
850*100*35 |
920*100*45 |
Lifting Speed (MM/S)-laden/unladen |
120/270 |
120/270 |
Overall Length (MM) |
2450 |
2580 |
Overall Width (MM) |
1830 |
2000 |
Height-Overhead guard--mm |
2250 |
2330 |
Height---Mast Lowered (MM) |
2104 |
2094 |
Height-Mast Extended w/ Load-Backrest -mm |
3885 |
3875 |
Height--Free Lift --mm |
100 |
100 |
Outrigger Height ---mm |
415 |
415 |
Tilt Angle---- Upward/Downward--deg. |
3/5 |
3/5 |
Fork Spread Range (MM) |
247-973 |
247-1072 |
Reach Stroke |
1050 |
1065 |
Min Ground Clearance--mm |
84 |
88 |
Wheel Type |
Polyurethane Solid Tyre |
|
Driving Wheel (MM) |
Φ343×108 |
Φ343×120 |
Balance Wheel (MM) |
Φ180×76 |
Φ204×80 |
Front Wheel (MM) |
Φ267×114 |
Φ267×114 |
Swivel Caster Wheel---mm |
Φ267×76 |
Φ267×76 |
Battery V/AH-Domestic BRAND |
48V /300 AH |
48V/400 AH |
Service Brake |
Electromagnetic |
|
Parking Brake |
Electromagnetic |
|
Charger-Intelligent |
48V /40 A |
48 V/50 A |
Driving Motor (KW) |
5.5 (AC) |
5.5(AC) |
Lifting Motor (KW) |
6.3 |
7.5 |
ATTACK GLOBAL (HK) Co.,Ltd. is a professional articulated forklift manufacturer specializing in material handling machinery for more than 10 years. We produce and supply omni wheel forklift, forklift omni wheel, telescopic pallet lifter, etc. Wantt o know more, contact us.
