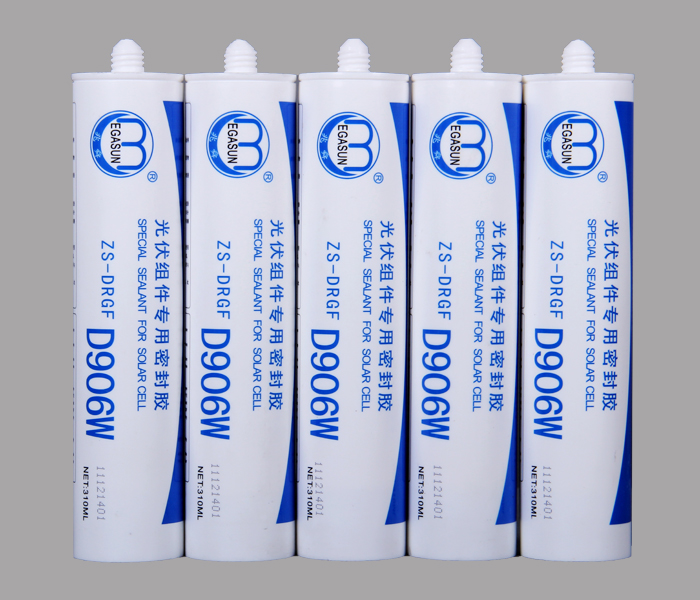

Silicone adhesive for solar photovoltaic components

Before The Curing

After the curing

Sample: 300mL / tube, 25tubes / box.

APPLICATION RANGE

APPLICATION RANGE

Widely used in various types of electronic components, play the role of heat conduction, fire retardant, waterproof.

Solar Lamp		Junction Box		Junction Box

The Aluminum Frame		Border

PRODUCTION CHARACTERISTICS

PRODUCTION CHARACTERISTICS

Can be used in harsh environments for a long time The silicone sealant has the performance of superior high and low resistance, excellent insulation, high stability with thermal oxidation and ozone. It can be widely usesd in aerospace, automotive electronics, office equipment, construction and so on.

Effectively prolong the service life of electronic components Silicone sealant has superior thermal conduction and bonding property.it not only can fixed the electronic components, make heat transferring to the heat sink, to prevent overheating of electronic components to avoid resulting in break down, which can improve the service life.

WISE CHOOSE

OUR ADVANTAGE

Our company is committed to providing superior solution about

silicone rubber for customers，we have long-term cooperation with

many famous customers of industry and listed company.

	4 MAIN REASONS

QUAKE-PROOF PROPERTY

	WATERPROOF PROPERTY

			CORONA RESISTANT

	LEAKAGE RESISTANT

METHOD OF OPERATION

INSTRUCTIONS

1. Clean surface: cleaning adhesion surface and to remove the rust,dust and greasy dirt, etc.

2. After sizing: Unscrew the hose cap (or cutting), squeezing the glue on cleaned surface, so that can be distributed uniformly.

3. Curing: the part of bonded or sealed were cured naturally in the air. The curing is a process from the surface to the internal, the depth of curing is 2 ~ 4mm within 24 hours (at room temperature and 55% relative humidity), if the location of sizing is too deep, especially when it is not easy to contact the air, then the completely curing time will be extended, if the temperature is low, the curing time will be extended either, the fully curing time need at least 7 days if the thickness of sealant is 6mm.

MATTERS NEEDING ATTENTION

NOTE

After operating, the rest of glue must be sealed to store , and tightened the cap immediately. when using it in the next time, if there is a little crust in sealed place, to remove it and it will not affect the normal application. the process of storage , the canal orifices may appear the phenomenon of the curing, to clean it then it can be used again, and the performance of product is not affected.

SPECIFICATION TRANSPORT

STORAGE

1. 6 months shelf life if stored below 25 ℃ in cool, dry place, when the product passed its expiration date, it should be confirmed without abnormal phenomenon, then that can be used.
2. These products don't belong to dangerous goods, so they can be transported as normal chemicals. But be careful of leakage.

3. Ensure that it is without abnormal before being used if the products exceeding retention period.
