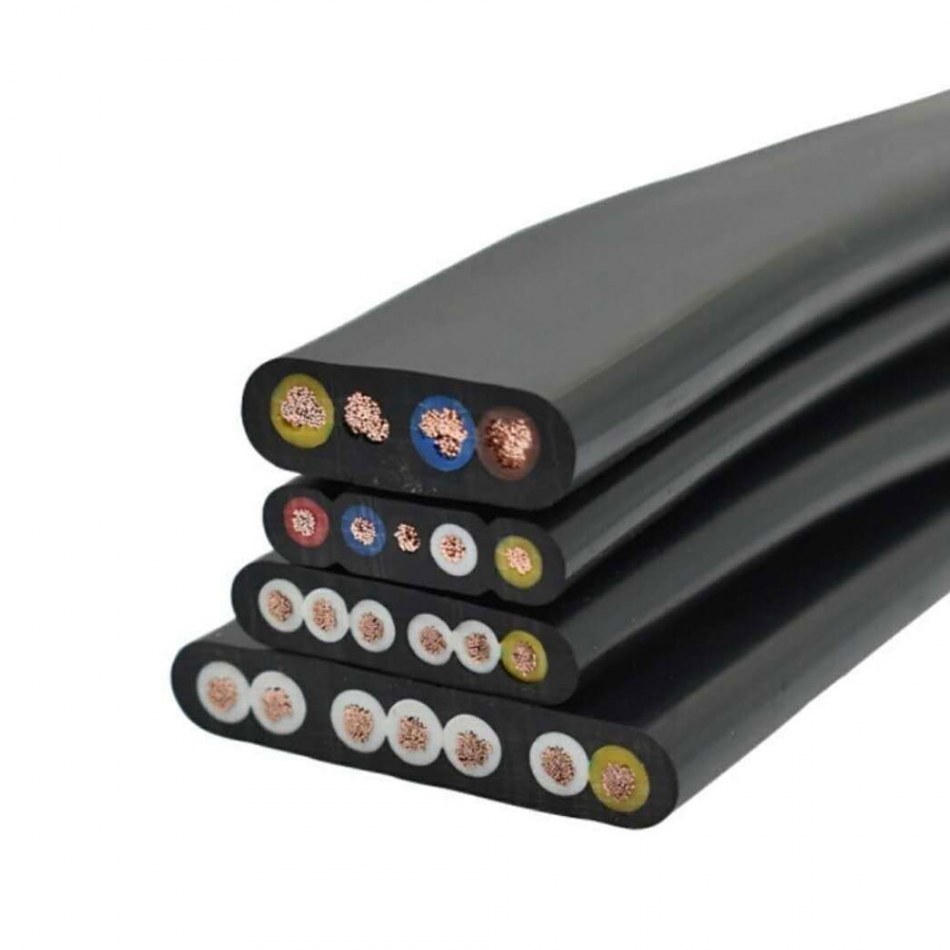

SILICONE MULTI CONDUCTOR WIRE

A multi-conductor cable is defined as “an electrical cable which consists of multiple numbers of conductors with silicone insulation sheaths placed in a single cable”. In the construction of multi-conductor cables, strands of copper wires are utilized in Shonsin Cable.

One of the obvious benefits for silicone rubber cable is the flexibility. The combination of silicone-rubber and the 0.08mm / 0.06mm OFC or Tinned Copper conductor yields the most flexible wire construction. This type of wire is ideal with applications where routing a wire through a tight space is required such as, box builds, equipment, or handheld devices and has excellent weather-ability.

The standard temperature range is -60°C to 200°C. In most applications, it may be heated from 180 to 200°C for a year, and is also very flexible at extreme low temperatures (stiffening temperature of approximately -115°C). Compared to Thermoplastic material (like: PVC), silicone insulation will not melt when exposed to high temperature. If the insulation melts, this may cause a short circuit which is very dangerous.

Features of Silicone Multi Conductor Wire:

Rated Temperature: 200℃

Rated Voltage: 30 V ~ 600 V

Fire Resistance: None ( VW-1 & CSA FT2 optional )

Insulated Conductor: Labeled or complying with manufacturer's AWM procedure

Jacket: Extruded SR (Silicone)

RoHS & REACH compliance

Resistant to acids, alkalis, chemicals.

Use: Internal wiring installed were totally enclosed, or were not subjected to a movement nor mechanical abuse.

Shonsin Electronics Co., Ltd is a professional custom cable manufacturers, we provide multi conductor power cable, 24 awg silicone wire, 22 awg silicone wire, 20 awg silicone wire, 18 awg silicone wire, elevator cable and etc. Want to know more? Contact us now.
