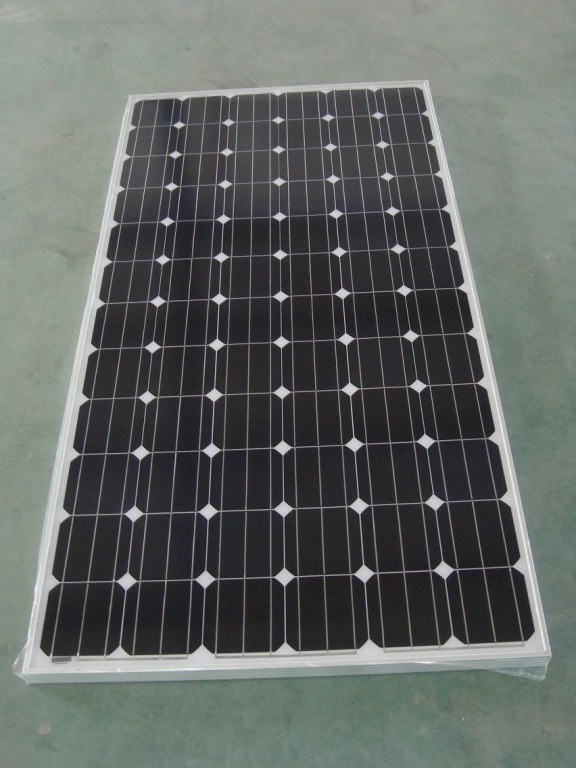

Silver mono 195w solar panel
Quantité : 1000 Prix : USD 0.6/W
|
Number of Cells (Pcs) |
72 |
|
|
Maximum power (Pmax) |
195W |
|
|
Output tolerance |
plus |
|
|
Open Circuit Voltage(Voc) |
43.2V |
|
|
Short Circuit Current (Isc) |
6.36A |
|
|
Maximum Power Voltage (Vmp) |
36V |
|
|
Maximum Power Current(Imp) |
5.41A |
|
|
Standard Test Condition (STC): Irradiance level 1,000W/m2, Spectrum AM 1.5, and Cell Temperature 25℃ |
||
|
Temperature Coefficients of Pmax |
-0.549%/℃ |
|
|
Temperature Coefficients of Voc |
-0.397%/℃ |
|
|
Temperature Coefficients of Isc |
+0.06%/℃ |
|
|
Maximum System Voltage (V) |
1,000 VDC |
|
|
Temperature Cycling Range |
-40℃~+85℃ |
|
|
Surface Maximum Load Capacity |
2,400Pa |
|
|
Allowable Hail Load |
227g steel ball fall down from 1m height |
|
|
Dimensions (mm) |
1580mm(L)×808mm(W)×35mm(H) |
|
|
Frame |
Aluminium-alloy |
|
|
Length of cables (mm) |
900 |
|
|
Weight(kg) |
19kgs |
|
|
Packing |
25pieces for one pallet |
|
|
Warranty |
12 years warranty, 90% for 10 years, 80% for 25 years |
|
Personne à contacter : Alisa Fan, 0086 021 62099100
Bonne affaire : acheter au vendeur
