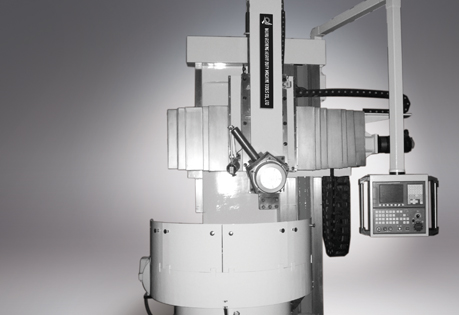

Single Column Vertical Lathe
Conventional Single Column Vertical Lathe Servo motor and gearbox directly drive the Ballscrew for X&Z axis feeding. It makes the machine better accuracy and fast-moving. The machine can equip a handheld unit for easy control. Full cover is optional together with a chip conveyor and coolant system.
Features of Conventional Single Column Vertical Lathe
The machine is suitable for rough or fine machining of auto, bearing, wind power, motor and water pump etc.
The base and column use one-piece high quality castings.
X&Z are using brand linear guideway.
Main transmission is driven by frequency or servo motor, simple structure and high transmission efficiency.
Servo motor and gearbox directly drive the Ballscrew for X&Z axis feeding. It can reach high accuracy and fast moving.
Full cover is your optional together with chip conveyor and coolant system.
Handheld Unit.
General Description of Conventional Single Column Vertical Lathe
The conventional single column vertical lathe is a compact, high precision, heavy-duty machine. The rigid vertical column and base are quality castings, heavily ribbed for reduced thermal distortion and vibration dampening. It is designed for turning of small or medium-size workpieces.
The X and Z axis guideways are completely enclosed and a forced lubrication system assures high precision. The Ballscrew driving system enables rapid traverse rates and precision feeding traverse. The precision high-class ballscrews are driven directly by the servo motors, eliminating belts or gears for high precision.
The X & Z-axis can be working with the DRO system, the operator can easily set the tools and work an easier way to finish the machining.
The machine can be modified to be a 2-axis CNC control if you need it in the future.
The automatic lubrication system is standard for this machine.
Parameters of Conventional Single Column Vertical Lathe
|
Model No |
CK577 |
CK518 |
CK5110 |
CK5112 |
CK5116 |
|
Max Machining Diameter(mm) |
700 |
860 |
1,000 |
1,250 |
1,600 |
|
Max Machining Height(mm) |
650 |
750 |
750 |
1,000 |
1,000 |
|
Max Load on Table(Kg) |
1,000 |
1,200 |
1,200 |
5,000 |
8,000 |
|
Table Diameter(mm) |
600 |
800 |
900 |
1,010 |
1,400 |
|
Main Motor Power(Kw) |
11 |
15 |
15 |
22 |
30 |
|
Table Rotary Speed(r/min) |
38-500 |
20-400 |
20-400 |
6.3-300 |
5-250 |
|
Horizontal Travel X(mm) |
420 |
550 |
550 |
700 |
915 |
|
Vertical Travel Z(mm) |
600 |
650 |
650 |
650 |
800 |
|
Feeding Speed of X&Z(mm/min) |
1-2,000 |
1-2,000 |
1-2,000 |
1-3,000 |
1-3,000 |
|
Position Accuracy of X&Z(mm/1000mm) |
+/-0.03 |
+/-0.03 |
+/-0.03 |
+/-0.03 |
+/-0.03 |
|
Size of Machine LxWxH (M) |
2.0x1.8x1.8 |
2.2x1.9x1.9 |
2.4x2.1x2.4 |
2.5x2.3x3.2 |
2.5x2.3x3.5 |
|
Weight of Machine (Kg) |
4,500 |
6,500 |
7,000 |
9,300 |
14,000 |
Sealion Machine Tool is a professional machining center manufacturer. We provide Lathe, CNC Boring Mill, CNC Machining Center, single spindle lathe, single spindle automatic lathe machine, single spindle automatic lathe and so on. Want to buy machine tools? Please contact us.
