Single Compression Cable Gland

Product

Single Compression Cable gland

Category

Brass Cable Gland

Thread

PG Thread

Connector Type

Installable Straight

Locking System/ Mating Style

Screw

Material

Sealing nut, body and lock nut are made of nickel plated brass, the claw is made of PA and the seal and washer are made of nitrile butadiene rubber (NBR).

Working termperature:

-40 to 100 centigrade in static state,instantaneous heat resistance up to 120 centigrade,-20 to 80 centigrade in dynamic state,instantaneous heat resistance up to 100 centigrade.

Characteristics

Special design of clamping die and rubber part,large range in clamping cable, ultra-strong stretching resistance, waterproof, dustproof,and high ability to resist salt,acid,alkali, ,grease and general solvent.

Additional Description

With washer and lock nut

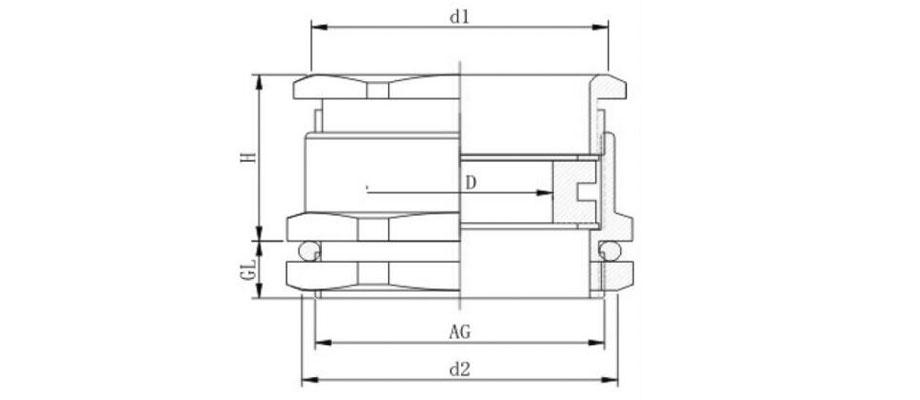

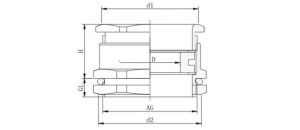

Thread specification

Range (mm)

Thread O .D . AG(mm)

Thread Length GL (mm)

Joint length H (mm)

Spanner Size (mm)

PG7

5-7

13

5

17

14/15

PG9

6-12

15

6.2

18

18/18

PG11

11-15

18.6

6.5

17.5

20/21

PG13.5

14-18

20.4

7.5

20.5

22/23

PG16

17-23

22.5

8

22.2

24/25

PG21

22-27

28.9

8

23.5

30/32

PG29

26-33

37.0

8

25.5

40/41

PG36

32-41

47.0

10

29

50/52

PG42

40-49

54.0

11

33

57/57

PG48

48-57

59.3

12

34

64/64
