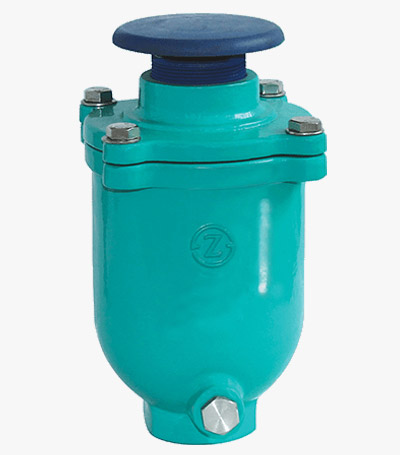

Single Orifice Air Release Valve

Features of single orifice air release valve

Can be a large amount of exhaust, improve water efficiency pump

Can be a small amount of exhaust, make sure the pipe is full of water;

Interface with filter screen, filter impurities, long life;

Float ball is made of SS304, resistant to corrosion.

Single Orifice Air Release Valve Working Principle

At the beginning of the pump, a large diameter is used to remove a large amount of gas in the pipeline to improve the water efficiency of the pump; When the pipe is normally supplied with water, trace gases are discharged through holes in the piston rod to ensure the pipe is fully supplied.

Single Orifice Water Air Release Valve Installation and Commissioning

Install a gate valve in front of the valve for the next installation and maintenance. If the discharge valve is in the pipeline where the water is frequently cut off, it is recommended to install a buffer butterfly valve in front of the discharge valve. For specific use, please consult ZECO Valve Group.

Single Orifice Air Release Valve Material and Standard

Size Range: 3/4"~2"

Pressure Rating: 10bar ~ 25bar

Face to Face Dimensions: EN 558-1, ASME B 16.10

Flange End Dimension: BS 21

Coating: Fusion Bonded Epoxy Coating

Inspection and Test: ISO 5208 / EN 12226-2

As one of chinese valve manufacturers, we have types of related products for sale, if you have needs, please contact us.
