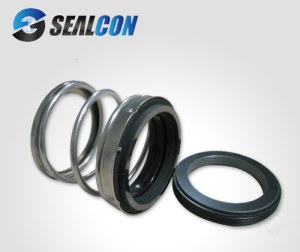

Single-Spring Elastomer Bellow Seals R24 for Burgmann 560
Replacement for：
Burgmann 560
Features:
Single-Spring
Inch size available
Performance Capabilities of Elastomer Bellow Seals R24
Temperature: -20℃ to 150℃, dependent on the elastomer
Pressure: Up to 8 bar
Speed: Up to 10 m/s
End play/axial float allowance ±0.1mm
Sizes of Elastomer Bellow Seals R24
8mm to 50mm
3/8” to 2”
Materials Selection of Elastomer Bellow Seals R24
Face: Carbon, SiC, TC
Seat: Ceramic, SiC, TC
Bellow: NBR, EPDM, VITON etc.
Spring: SS304, SS316
Metal parts: SS304, SS316
Specification of Elastomer Bellow Seals R24
|
Elastomer Bellow Seals By Size |
d |
D |
D1 |
L1 |
L2 |
|
R24-8 |
8 |
18.2 |
21 |
7 |
11.2 |
|
R24-9 |
9 |
18.2 |
24 |
7 |
16.2 |
|
R24-10 |
10 |
20.6 |
24 |
7 |
16.2 |
|
R24-11 |
11 |
20.6 |
24 |
7 |
16.2 |
|
R24-12 |
12 |
21.8 |
26 |
7 |
17.2 |
|
R24-13 |
13 |
21.8 |
26 |
7 |
17.2 |
|
R24-14 |
14 |
26.4 |
28 |
7 |
18.2 |
|
R24-15 |
15 |
26.4 |
28 |
7 |
18.2 |
|
R24-16 |
16 |
26.4 |
32 |
8 |
19.2 |
|
R24-17 |
17 |
29.5 |
32 |
8 |
19.2 |
|
R24-18 |
18 |
29.5 |
35 |
8 |
19.2 |
|
R24-19 |
19 |
29.5 |
35 |
8 |
19.2 |
|
R24-20 |
20 |
31.6 |
38 |
8 |
20.2 |
|
R24-22 |
22 |
33.6 |
40 |
8 |
20.2 |
|
R24-25 |
25 |
39.6 |
44 |
9 |
20.2 |
|
R24-28 |
28 |
45 |
46 |
9 |
21.2 |
|
R24-30 |
30 |
46.6 |
50 |
9 |
22.2 |
|
R24-32 |
32 |
46.6 |
54 |
9 |
24.2 |
|
R24-35 |
35 |
50.8 |
58 |
10 |
26.2 |
|
R24-38 |
38 |
54.3 |
60 |
10 |
27.2 |
|
R24-40 |
40 |
57.3 |
64 |
10 |
28.2 |
|
R24-45 |
45 |
61.3 |
66 |
10 |
30.2 |
|
R24-50 |
50 |
67.8 |
72 |
10 |
32.2 |
|
Elastomer Bellow Seals By Size |
d |
D |
D1 |
L1 |
L2 |
|
R24-3/8" |
9.525 |
23.5 |
22.225 |
6.4 |
22.2 |
|
R24-1/2" |
12.7 |
26 |
25.4 |
6.4 |
22.2 |
|
R24-5/8" |
15.875 |
30 |
31.75 |
8.7 |
23.8 |
|
R24-3/4" |
19.05 |
32.5 |
34.925 |
8.7 |
23.8 |
|
R24-7/8" |
22.225 |
37.5 |
38.1 |
8.7 |
25.4 |
|
R24-1" |
25.4 |
44 |
41.275 |
9.5 |
27 |
|
R24-1 1/8" |
28.575 |
48 |
44.45 |
9.5 |
28.6 |
|
R24-1 1/4" |
31.75 |
50 |
47.625 |
9.5 |
28.6 |
|
R24-1 3/8" |
34.925 |
54.5 |
50.8 |
9.5 |
30.2 |
|
R24-1 1/2" |
38.1 |
58.5 |
53.975 |
9.5 |
30.2 |
|
R24-1 5/8" |
41.275 |
64 |
60.325 |
11.1 |
36.5 |
|
R24-1 3/4" |
44.45 |
67 |
63.5 |
11.1 |
36.5 |
|
R24-1 7/8" |
47.625 |
71 |
66.675 |
11.1 |
39.7 |
|
R24-2" |
50.8 |
73.5 |
69.85 |
11.1 |
39.7 |
Hangzhou Sealcon Fluid Machinery Co., Ltd, as an excellent metal seal suppliers china, offers a wide range of china shaft seal for you to choose from
