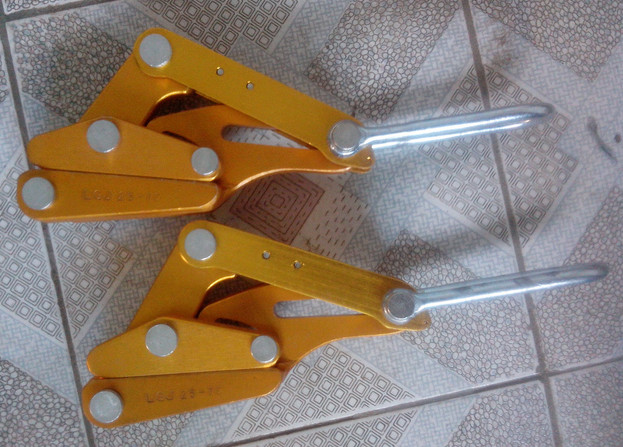

SJKL-1 insulated wire rope clips
Quantité : 1 pc Prix : 10 usd/pc
Match with delicate smooth clamp mouth, minimal harm to wires
Made of high-tensile forged carbon steel
Half-moon shape clamping jaw is suitable for pulling steel strand and steel wire
Planar shape clamping jaw is suitable for pulling electric cable, will not damage cable's surface
Clamp mouth with insurance device, will not jump wire
|
Model No. |
Cat. No. |
Suitable conductor（LGJ） |
Rated Load（KN） |
Cable diameter（mm） |
Weight（kg） |
|
SK-02A |
SJKL-1 |
25-70 |
10 |
Φ13.8-Φ18 |
1.55 |
|
SK-02B |
SJKL-2 |
95-120 |
15 |
Φ19.6-Φ21 |
2.4 |
|
SK-02C |
SJKL-3 |
150-240 |
25 |
Φ22.6-Φ26.4 |
3.6 |
|
SK-02D |
SJKL-4 |
300-400 |
40 |
Φ27.4-Φ29.8 |
5.4 |
