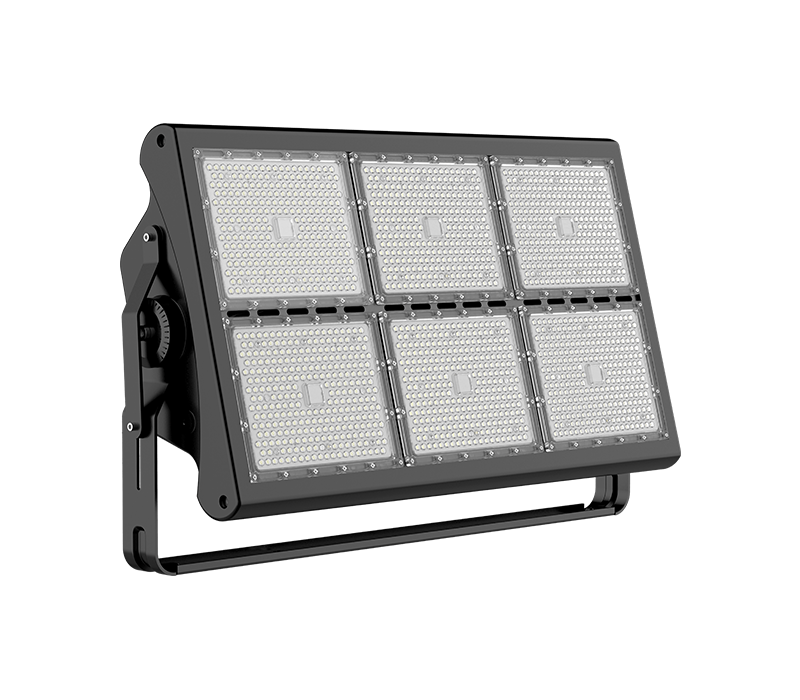

SkyWing II Sport & High Mast Light High Power LED Sports Filed Light
SkyWing II Sport & High Mast Light High Power LED Sports Filed Light
Light Source: CREE/Lumileds/Bridgelux/Osram/Samsung/Epistar
LED Driver: Meanwell/Philips/MOSO/Sosen/Lifud/Inventronics
Power range: 400W/500W/800W/1000W/1200W/1500W
Voltage: AC120-277V/AC200-480V
Size: L325xW472xH160mm,L629xW536xH160mm,L890xW536xH160mm
Weight: 15KG/15KG/28KG/28KG/39KG/39KG
CCT: 3000K/4000K/5000K/6000K
Optical : Beam angle 10°/25°/45°/60°/90°
Efficacy: 140lm/W standard, 150lm/W optional
CRI: Ra>80
IP Rating: IP66
IK Rating: IK08, IK10 Available
Installation: With U type installation bracket
Temperature: -30℃ to +50℃
Warranty: 5Years
Smart control: Photo sensor, motion sensor, Emergency battery
The SkyWing II Series LED flood lights are designed to shine far across large target surfaces for wide area flood lighting and narrow beam spot lighting in an extensive range of applications such as high mast lighting, parking lot lighting, sports field lighting, as well as industrial and commercial lighting applications.
With functional design, rugged construction and superior engineering, the technology behind this range of high power LED luminaries addresses the concerns of commercial, retail and industrial property owners who have been obsessed by challenge of reducing energy use and maintenance cost to sustainability goals.
- Utilizing top-of-the-line LEDs and optics along with optimal thermal management, the SkyWing II Series delivers more directional lumens per fixture than metal halide and high pressure sodium systems with high efficacy (up to 150 lm/W).
- The scalable and modular feature of the SkyWing II Series LED luminaires allows for variable combinations of modules to generate lumen packages ranging from 64,884 lm to 191,600 lm while drawing power ranging from 400 watts to 1500 watts at 700mA from a 120-277 VAC (220-240 VAC or 347-480 VAC optional) electrical system.
- State-of-the-art optical assemblies accommodate PC lenses for spot, narrow, medium, wide, horizontal and forward throw light distributions. Targeted optics deliver superior uniformity and minimize pixilation concerns to provide excellent illumination to the targeted application.
- Designed to perform reliably in high ambient temperatures up to +50°C, a robust thermal management system provides an efficient thermal path from the metal core PCBs to heat sink assemblies of the LED modules.
- A rugged die cast aluminum housing provides superior external thermal dissipation to facilitate heat transfer from the LED modules. Optimized thermal management results in the enhanced level of lumen maintenance (L70>100,000 hours).
- The luminaires are powered by high efficiency constant current LED drivers with active PFC correction and full set protection against over-voltage, over-temperature, short circuit conditions, and lightning.
- The SkyWing II Series is compatible with the DALI dimming system. Occupancy and daylight sensors can be integrated for daylight harvesting and motion control.
Specifications:
Model No. | YB-ISL-QCD-B400W | YB-ISL-QCD-B500W | YB-ISL-QCD-B800W | YB-ISL-QCD-B1000W | YB-ISL-QCD-B1200W | YB-ISL-QCD-B1500W |
Rated Power | 400W | 500W | 800W | 1000W | 1200W | 1500W |
Input Voltage | AC85~265V / AC100~277V | |||||
LED Chip | CREE/Lumileds/Bridgelux/Osram/Samsung/Epistar | |||||
LED Driver | Meanwell/Philips/MOSO/Sosen/Lifud/Inventronics | |||||
Material | 1070 Cold Forge +Lens | |||||
CRI | Ra>70 | |||||
Power Factor | PF>0.95 | |||||
CCT | 2700-6500K | |||||
Light Efficacy | 140lm/W standard, 150lm/W optional | |||||
IP Rating | IP66 | |||||
IK Rating | IK08, IK10 Available | |||||
Operation Temperature | ﹣35°C- +50°C | |||||
Beam Angle | 10°/25°/45°/60°/90° | |||||
Warranty | 5years | |||||
Lifespan | 50,000Hrs | |||||
Dimension | L325xW472xH160mm | L325xW472xH160mm | L629xW536xH160mm | L629xW536xH160mm | L890xW536xH160mm | L890xW536xH160mm |
Packing | 650*475*265mm | 650*475*265mm | 775*660*265mm | 775*660*265mm | 1005*685*265mm | 1005*685*265mm |
Weight | N.W: 15KG / G.W: 18KG | N.W: 15KG / G.W: 18KG | N.W: 28KG / G.W: 31KG | N.W: 28KG / G.W: 31KG | N.W: 39KG / G.W: 43KG | N.W: 39KG / G.W: 43KG |
Certificate | CCC / CQC / TUV / CB / FCC / SAA / CE / RoHS |
